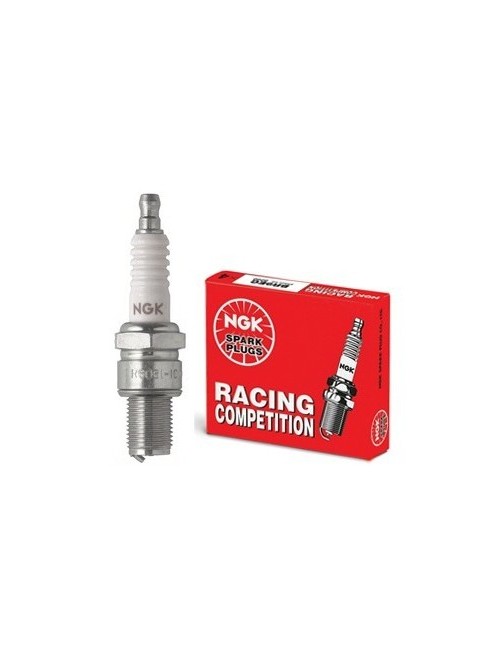

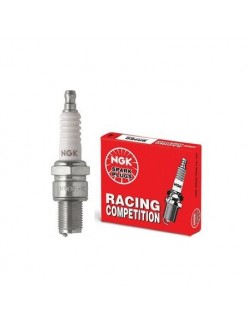

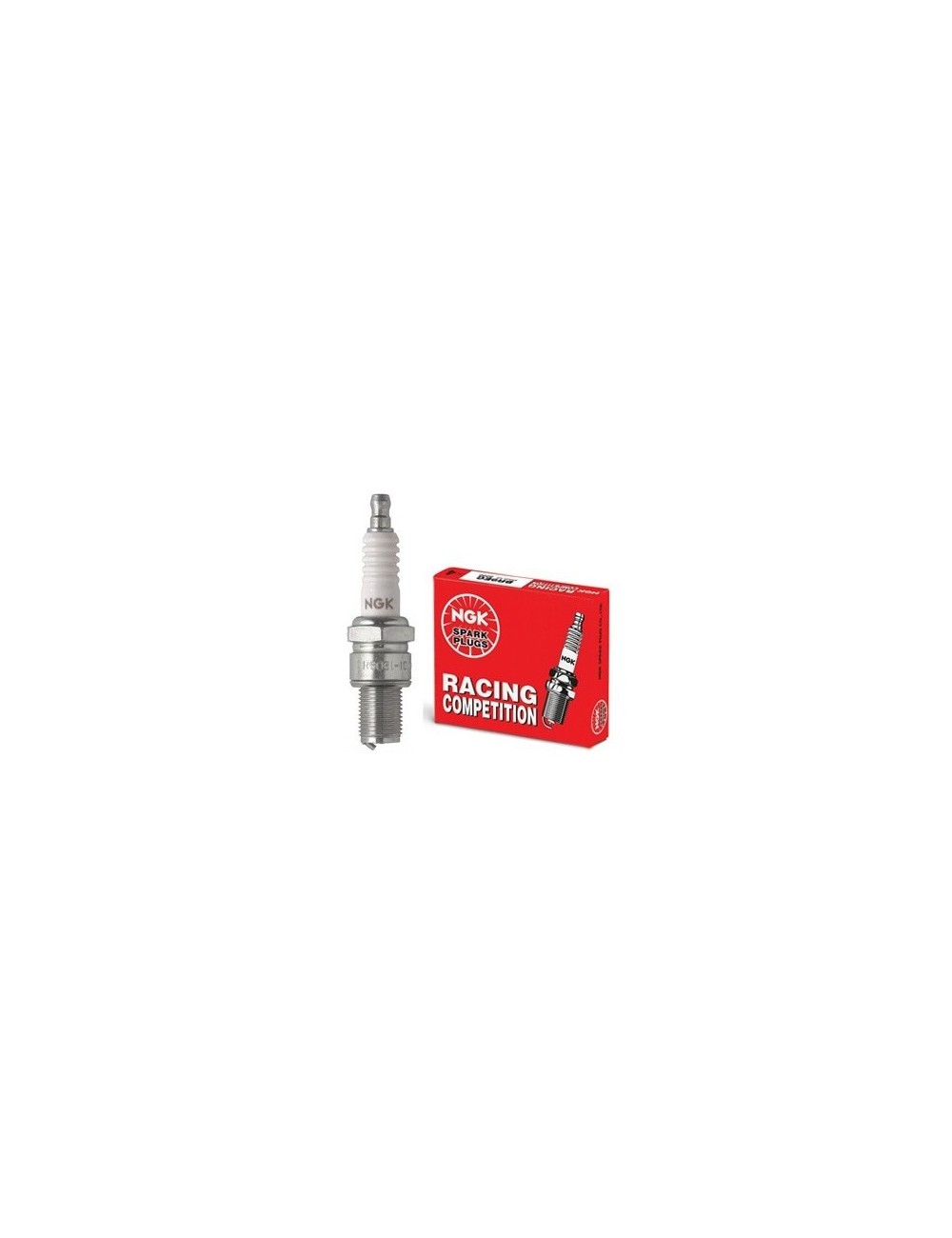

NGK B10EGP Candle

A bougie high-end ignition for competition engines and intensive use

The bougie NGK B10EGP is one bougie Competition ignitionspecially designed for Very high performance engines. Belonging to the range "EGP" and integrating the Platinum laser technology, this bougie offer performances and superior life to those of traditional candles.

With his central electrode in Gold / palladium alloy only 1 mm in diameterthe bougie NGK B10EGP guarantees a Exceptional inflammation qualitya extended life (up to 60,000 to 80,000 km), and a cleaner combustion, reducing consumption and maintenance costs.

Technical characteristics and benefits

Platinum laser technology

• 4 mass electrodes :
  • Stable ignitioneven in extreme conditions.
  • Reduced risk of failurefor a optimal performance in all circumstances.
• Exceptional life :
  • Up to 80,000 km, much greater than that of traditional candles.
  • Less replacementswhich reduces maintenance costs.

Gold / palladium alloy central electrode

• Ultra-end diameter of 1 mm :
  • Sparkle more powerful and more precise, improving the inflammation quality.
  • Optimal combustionfor a Increased responsiveness engine.
• Shorter mass electrode :
  • Increased mechanical strength, reducing the risk of premature deformation or wear.
  • Augmented lifeeven in intensive competition conditions.

Performance and economy

• Drop in consumption :
  • Cleaner combustionthanks to a Sparkle more efficient.
  • Reduction of polluting emissions, for a more environmentally friendly engine.
• Reduction of maintenance costs :
  • Fewer candle changesthanks to a extended life.
  • Increased reliability, limiting faults and mechanical interventions.

Compatibility and use

• Specially designed for competition and intensive use :
  • Adapted to 2-Time engines and 4 stroke, especially in karting, motorcycle or competition automobile.
  • Recommended use For systems requiring a Reliable and powerful sparkeven in extreme conditions.
• Ease of installation :
  • Standard mounting, compatible with most cylinders and ignition systems.
  • To associate with a adapted cap for a optimal connection.

For whom is designed bougie ?

The bougie NGK B10EGP is particularly suitable To:

• Competition pilots acknowledging bougie ultra-high-performance to maximize the performance of their engine.
• Karting amateurs, motorcycle or automobile wishing Improve responsiveness and the power of their engine, while reducing maintenance costs.
• Mechanics and preparers equipping their vehicles with high-end components for a Increased reliability in competition or in intensive use.
• Karting schools and clubs in need of Sustainable and efficient parts For their fleets of vehicles.

Installation and User Guide

For a optimal installation, follow these steps:

1. Check compatibility of the bougie With your engine and your ignition system.
2. Clean the well of bougie To avoid any dirt or residue.
3. Install the bougie NGK B10EGP respecting the tightening torque recommended (usually between 20 and 25 nm).
4. Connect the adapted cap for a Secure connection.
5. Check the correct operation the engine before resuming the track or the race.

Need help for installation or maintenance?

Our team of experts is at your disposal to accompany you in:

• The choice of bougie Suitable for your engine and your conditions of use.
• Installation and adjustment for a optimal functioning.
• Of maintenance tips to extend the life of your equipment.

Further information

• Maintenance :

  • Check regularly The state of the bougie To detect any wear or fouling.
  • Clean the bougie With a soft brush if necessary, avoiding abrasive products.
  • Replace the bougie according to the recommendations of the manufacturer or in the event of a sign of advanced wear.

• Compatibility :

  • Check compatibility With your engine model and your ignition system before purchase.
  • Suitable for 2-stroke engines and 4 stroke, especially for competition vehicles or very high performance.

• Sustainability :

  • Designed to resist the most demanding conditions of competition and intensive use.
  • Tested and approved for a maximum reliability In intensive use.

About NGK

• NGK is a world leader in the manufacture of ignition candles, recognized for its Innovation and its quality.
• NGK candles are Tested and approved by the largest manufacturers and competition teams, guaranteeing optimal performance under the most extreme conditions.

Why choose the NGK B10EGP?

• Sparkle more powerful Thanks to the gold / palladium electrode and Platinum laser technology.
• Extended life (up to 80,000 km), reducing maintenance costs.
• Stable ignition With 4 mass electrodes, for optimal combustion.
• Drop in consumption and Reduction of polluting emissions.
• Increased resistance the extreme conditions of

The use of competition candles finds its meaning when it comes to continuously high motor diets (> 10000 t / m) associated with very strong developed power (> 100KW / L), as is the case with competition engines. The longevity of the candles is not, in this case, a predominant criterion, it is rather the ability to bear for a given duration and without fail, the vibrations, the thermal loads and the speed of the gases that appear at these extreme speeds (in formula 1, The regimes are currently in the range of 17 to 18000 t / min). NGK, very cold (thermal range of 9 to 12), have a special insulation design to avoid the "blowing" of the spark by the gaseous turbulence; They support the most extreme conditions and are truly very different from normal candles.

Competition candles have very particular electrode designs (oblique mass electrodes, annular electrodes) as shown in photography. This sophisticated design avoids damage caused by the electrodes destroyed by vibrations.

"Specialties" have a cost. The specifically developed and manufactured ignition candles are of course more expensive than series candles. This is explained: the demand is not extensible because these candles are only used by professional stables, semi-professional teams, motor prepats and in the world of motorsport. But in this area, our products can show and demonstrate their particular qualities in sport competition and ensure better performance. In order to be sure that each type of specific application finds the bougie The best suited for its own needs, NGK has published a special catalog indicating all the characteristics of the available models as well as their thermal beaches.

One last comment on the operating time of a bougie of competition: it is not possible to accurately predict the operational longevity of a bougie of competition because the individual conditions of use are too different from each other. However, the user experience indicates that a service life of 1 and 5 competitions can be provided, depending on the vehicle's sports class.

-Indice: cold in 10 (= 31 surroundings at Denso)
-Reserved the engine: Very equipped / Competition / Run ...
- Resistance: No (without R)

What does B10 EVG mean:

B = Ø14mm pellet (to tighten with key 20.8mm)
10 = very cold heat index
E = 19.00mm thread length (long cullet)
GP = special gold-palladium center electrode / platinum tip
