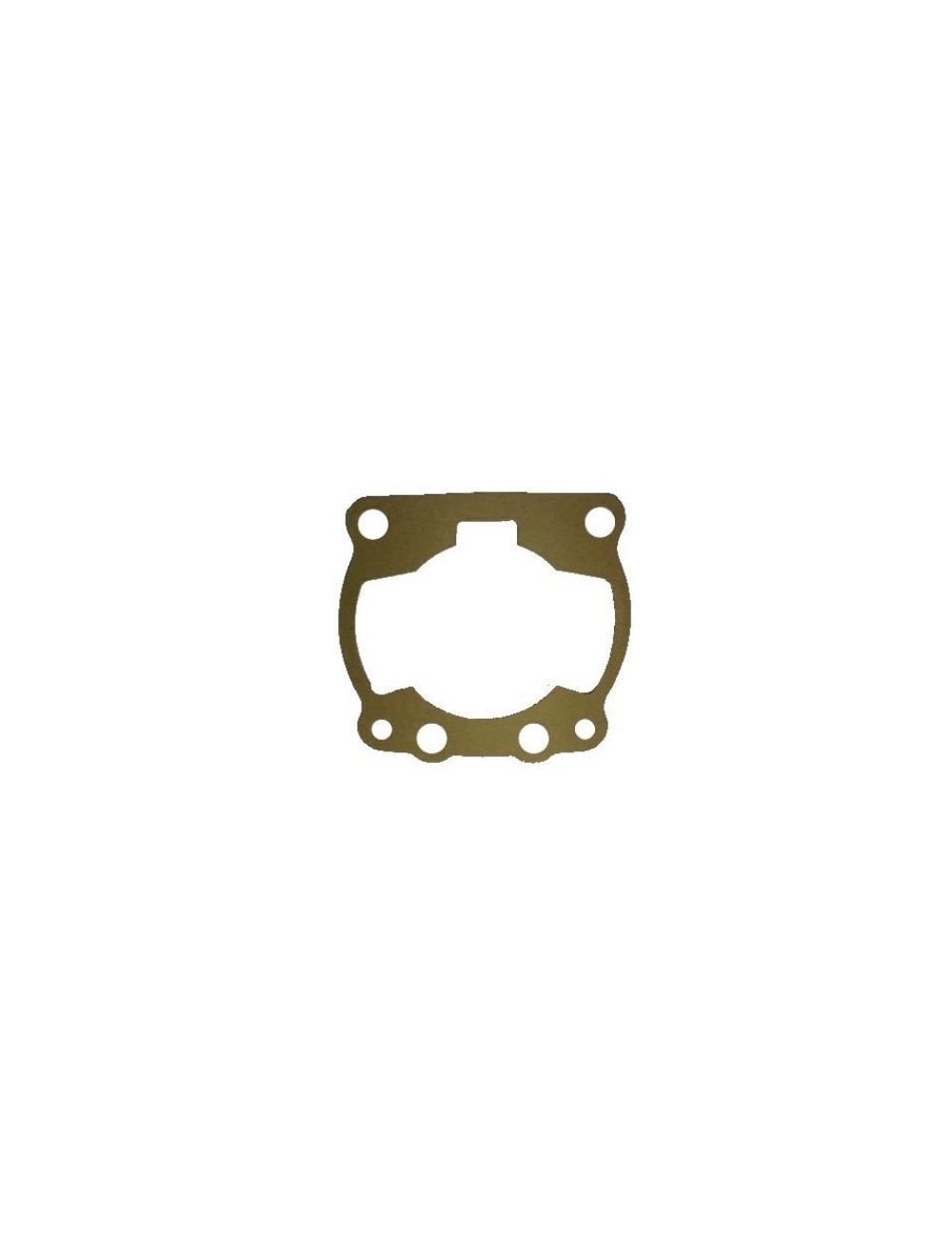

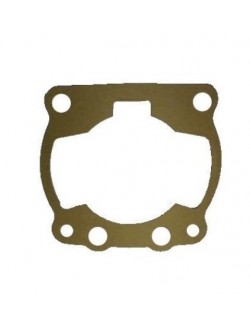

KZ10B / R1 / R2 / R3 cylinder seal. 0,30 TM-kart

Summary: the choice of length

The 0.30 mm base gasket is an important thickness in the adjustment range Tmkart. By raising the three tenths cylinder, you move the opening times of your transfers and your exhaust light up.

This is the privileged setting for fast circuits with long straight lines because it allows the engine to "better breathe" in the towers. This seal is perfectly compatible with the entire line of gear motors: KZ10B, R1, R2 and the new R3.

-Why choose the original TMKART seal?

1. Perfect geometry: Cut to strictly marry the shapes of housings R1, R2 and R3ensuring that the gas flow enters transfers without any disturbance.

2. Quality of the material: High density joint paper that retains its thickness of 0.30 mm even after tightening the tank.

3. Chemical resistance: Designed not to inflate or disintegrate in contact with competitive fuels and synthetic oils.

4. Reliable seal: Its texture makes it possible to compensate for the microcral imperfections of the seal planes for absolute sealing.

💡 Michel's trick

"The 0,30 mm seal is the one we go out when the 'extending" engine! My advice: If you have a joint from 0.10 to a 0,30, tone squish will increase by 0.20 mm mechanically. Your engine will be more flexible, but you risk losing explosion down. My trick: If you want to keep strength while taking advantage of the higher diagrams of the 0,30 seal, think to reduce your Copper cylinder head gasket. It's the secret of motorists to find the perfect compromise between couple and peak speed! "

- Mounting guide

• Application: Place the seal on clean housings. Check that the centering pawns are not marked, which could tear the paper with mounting.

• Lubrication: A slight grease film facilitates positioning and ensures perfect sealing from the first heating towers.

• Single use: Given the crushing suffered by a 0.30 mm seal, it is imperative to replace it with each disassembly of the cylinder.

- Technical specifications

• Brand: TMKART (original room).

• Compatibility: KZ10B / R1 / R2 / R3.

• Thickness: 0.30 mm.

• Material: Paper armed seal special competition.

✅ Why buy at Magickart?

• Origin Italy: 100% tmkart, no counterfeit.

• Full range: Also find the thicknesses 0.10, 0.20, 0.40 and 0.50 mm for your tailor-made stacking.

• Fast shipping: Your joints are shipped under rigid protection to arrive impeccable.

Note Magickart: Never neglect the condition of your base joints. A leak at this level sucks fresh air and can cause engine tightening in seconds!
