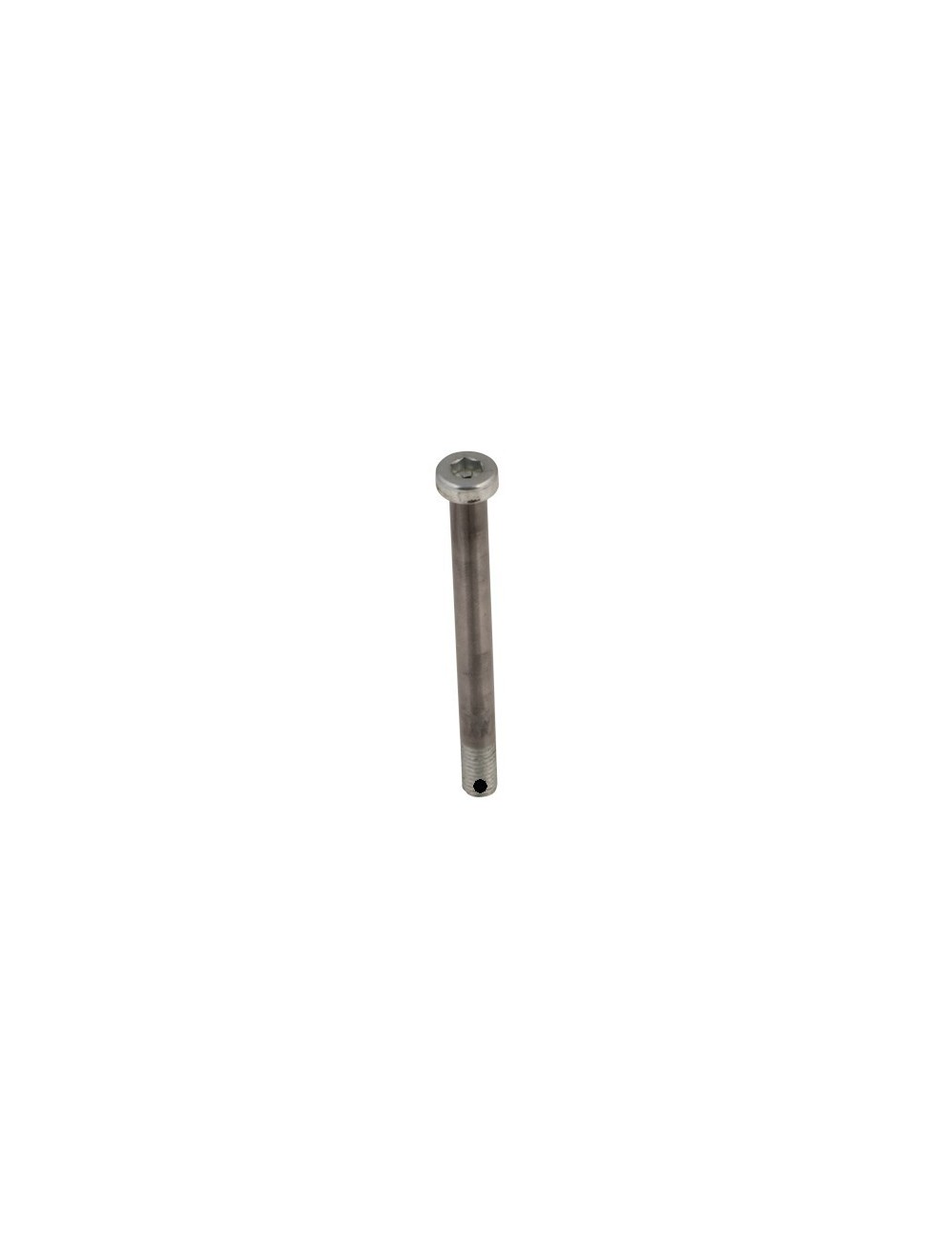

Steering Knuckle Pivot Axis OTK TCE - 8 x 90 mm

Ensure the precision of your steering and the integrity of your front axle with this original pivot axle OTK.

Specifically designed for the rockets of the group’s chassis OTK (Tony Kart, Kosmic, Exprit, Redspeed, etc.,) this axle is the centerpiece that connects the rocket to the rocket mount on the “C” of the chassis. Choose an official document, it guarantees a perfect fit, resistance to the extreme demands of competition and impeccable safety.

ℹ️ Important note: It is a type of axis TCE (Cylindrical Hex Socket Head / Allen,) of dimensions 8 mm in diameter by 90 mm in length.

Features and Specifications

• Original Manufacturer Part: Made by OTK Kart Group, certifying quality, the geometry and materials.

• Compatibility: Fits most stub axles used on competition karts from the group’s brands OTK (Tony Kart Racer 401, Kosmic Mercury, Exprit Noesis, etc..)

• Dimensions:

  • Diameter: 8 mm.

  • Length: 90 mm (subtitle.)

• Material: High-strength steel, treated to withstand shear and fatigue.

• Head type: TCE (Hexagon Socket Countersunk Head / Allen) enabling precise tightening and a flush profile.

• Packaging: Sold individually.

- The Little Story: The Importance of the Pivot

In the world of karting, the front-end geometry is crucial. The steering axis isn’t simply a bolt; it is the vertical axis of rotation around which the steering knuckle turns when you steer.

The engineers of'OTK they design these shafts with extremely tight machining tolerances. An overly flexible axle could bend under the forces exerted during cornering, blocking the steering or causing unpredictable go-kart behavior. Conversely, an overly brittle axle could break upon impact.

Furthermore, the head type (TCE) is chosen to ensure a robust fastening while integrating perfectly into the rocket’s design, without risk of interference with other parts. Using an “original” part is the only way to guarantee that your chassis performs exactly as intended by the manufacturer.

🔧 Michel's Tip

"Michel, our chassis expert, recommends: A slightly bent pivot axle, even imperceptibly to the naked eye, can cause understeer or oversteer problems and wear your tires unevenly. During each major service, check that the axle slides freely through its bushings (or bearings) without the slightest tight spot. For optimal assembly, apply a thin layer of grease or dry lubricant to the axle shaft to facilitate movement and protect against corrosion. Also remember to use a new self-locking nut (Nyloc type) to ensure that the axle does not loosen on track."

⚠️ Safety advice: The steering system is a safety-critical component. The assembly of this part must be carried out by a competent person. Check the tightness and freedom of movement of the pivot before taking to the slopes.

Order your pivot axle OTK 8x90 from now on on Magickart.fr to maintain your kart’s performance. Fast shipping.
