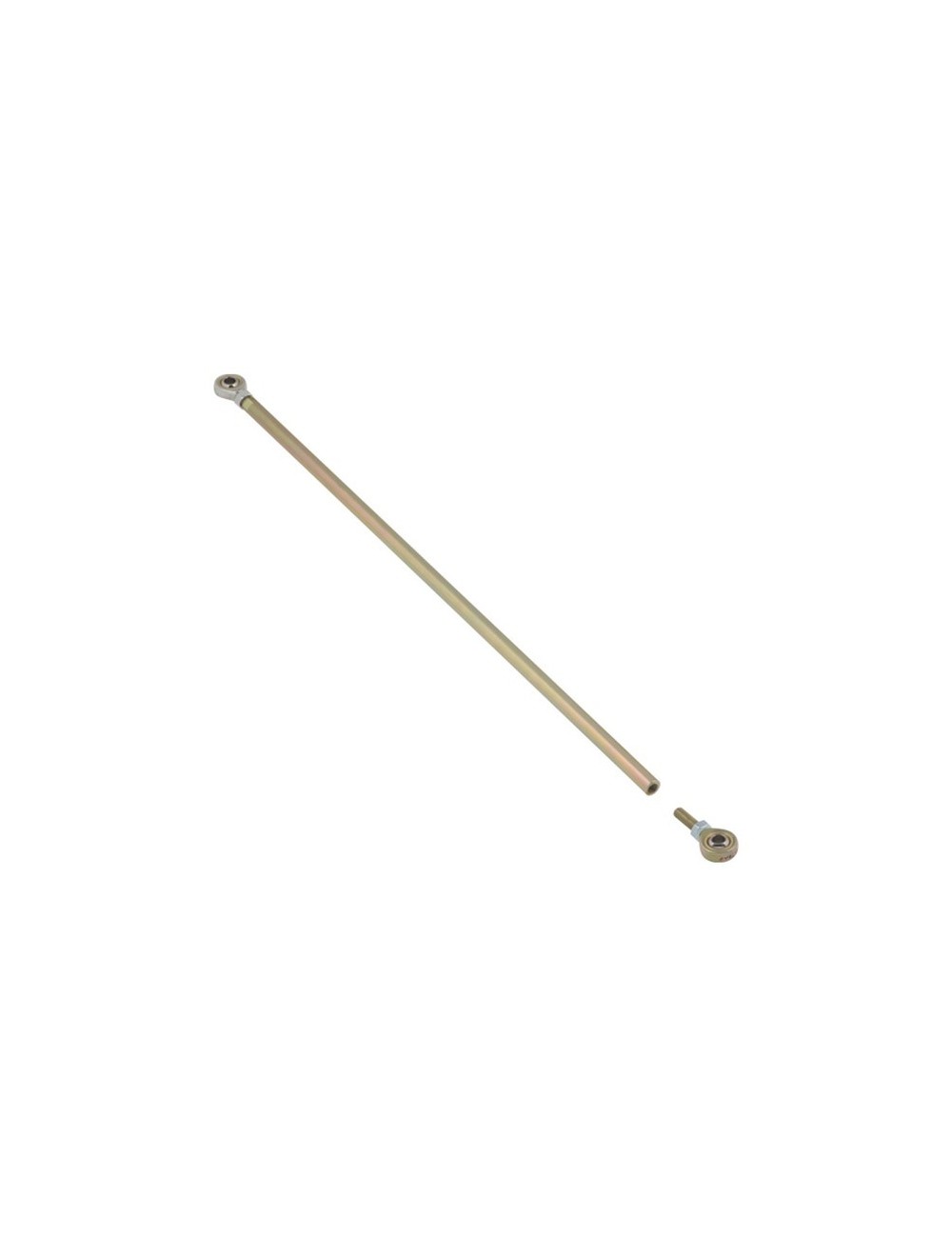

OTK 530 mm box linkage

Presentation: the precision of the passage of speeds

This linkage of 530 mm is a piece of origin designed specifically for the chassis of the range OTK (Tony Kart, Kosmic, vice, redspeed, ln) in version Kz (gearbox motors). It ensures the direct transmission of the movement between the steering wheel lever and the engine selection shaft.

• Standard length: Its 530 mm dimension corresponds to the standard mounting on the majority of the group's adult chassis.

• Stiffness and lightness: Made in a high-strength steel alloy to avoid flexion during fast passages (shifter "), thus guaranteeing maximum accuracy.

• Chrome finish: Protects against corrosion and facilitates maintenance while offering the aesthetics "factory" characteristic of products OTK.

- Technical specifications

- Installation and settings

1. Installation of ball joints: This linkage requires the installation of two joints (usually males M6) at each end. Make sure you use quality joints to avoid any game in the order.

2. Length adjustment: Thanks to the thread at the ends, you can refine the rest position of your gear lever. Make sure there are enough nets engaged in safety joints.

3. Alignment: The linkage must be perfectly rectilinear between the lever and the engine. Any excessive angle will force on the ball joints and will harden the passage of speeds.

4. Interview: Clean the stem regularly to prevent brake dust or gum from accumulating on the threads.

💡 Michel's trick

"A well-setting linkage is tenths of earnings in the Chrono! The trick: Like the Joints are not providedTake advantage of it to mount joints with protection (bellows) to prevent the sand from joining the mechanism. My Pro Council: Always check the locknut lock of your ball joints before each session. A linkage that unscrews in the race, and it's the insured abandonment because you will stay blocked on a report! "

❓ FAQ SEO (Frequently Asked Questions)

Q: Why is the linkage sold without the ball joints?

A: This allows the pilot to choose the type of ball joints he prefers (steel, aluminum or with protection) or to reuse his current pods if they are still in good condition.

Q: This 530 mm length is suitable for all engines (TM, Iame, Modena)?

R: Yes, the length of the linkage is mainly determined by the distance between the steering wheel and the engine on the chassis OTK. It is compatible with the majority of KZ engines on the market.

Q: How do I know if my linkage is twisted?

A: Make it rolling on a flat surface (like a marble or a set table). If it 'jumps' or does not roll fluid, it is veiled and must be replaced to not distort the selection.
