By buying this product you can collect up to 10 loyalty points. Your cart will total 10 points that can be converted into a voucher of €1.00.
Full description: the reliability of the electric start
Why choose only the original part Rotax ?
-
High resistance materials: The teeth of the pinion are processed thermally to withstand repeated impacts against the start-wreath without sinning.
-
Calibrated reminder spring: The internal spring has a precise voltage to ensure instant retraction as soon as the engine starts, thus protecting the mechanism and the electric motor.
-
Treatment of the axis: The helical axis is polished to allow ultra-fast translation of the pinion, even after many hours of use.
-
Silence and precision: Unlike adaptable, the original return fits perfectly in the Needle cage (HK1010), limiting scrap drums and vibrations.
💡 Michel's trick
"The launcher is the great sensitive engine! If you hear a 'clac-clac' but that the engine does not turn, or if the starter whistles in the void is that your return is either sewered or his teeth are puffed. My advice: Never grease the outside of the pinion! The grease attracts the dust of gum and the filings, which ends up blocking the mechanism. A little dry lubricant spray to Teflon on the helical axis from time to time, and that's all. And if your teeth are marked, change it quickly before he does not massage your wreath, because there, the ticket is no longer the same! "
🎓 Tuto: Maintenance and replacement
-
Disassembly: Remove the starter cover. The return usually comes from it alone with its axis.
-
Cleaning: Regularly clean the return housing in the housing to evacuate dust.
-
Checking the cage: Enjoy it to check the needle cage At the bottom of the housing. If it is dry or marked, replace it.
-
Test: Check that the sprocket flows freely on its helical axis and it comes back in place thanks to the spring.
✅ Features
-
Reference Rotax : 251552
-
Type: Full launch mechanism (Bendix)
-
Compatibility: Rotax 125 Max, Junior, Senior, Master, Evo.
-
Origin: Certified Brp-Rotax
Note Magickart: Room sold individually. For a perfect starting system, also check the status of your Starter wreath (70 teeth) and your drums.
RX294812
Specific References

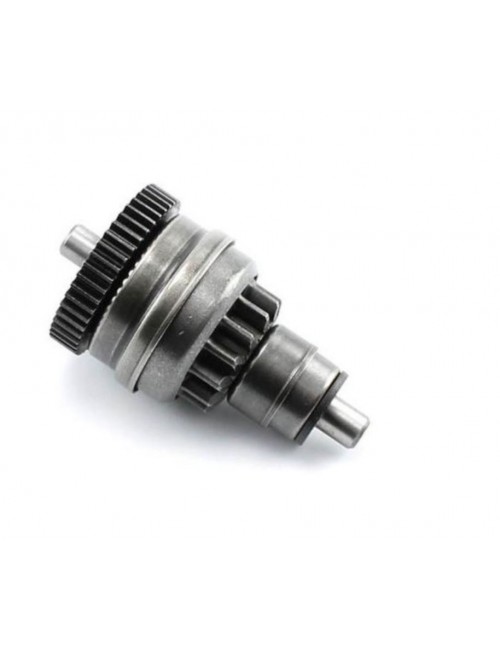

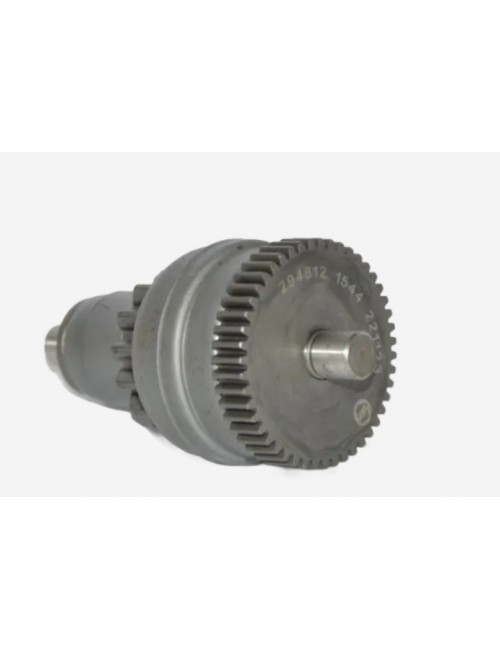

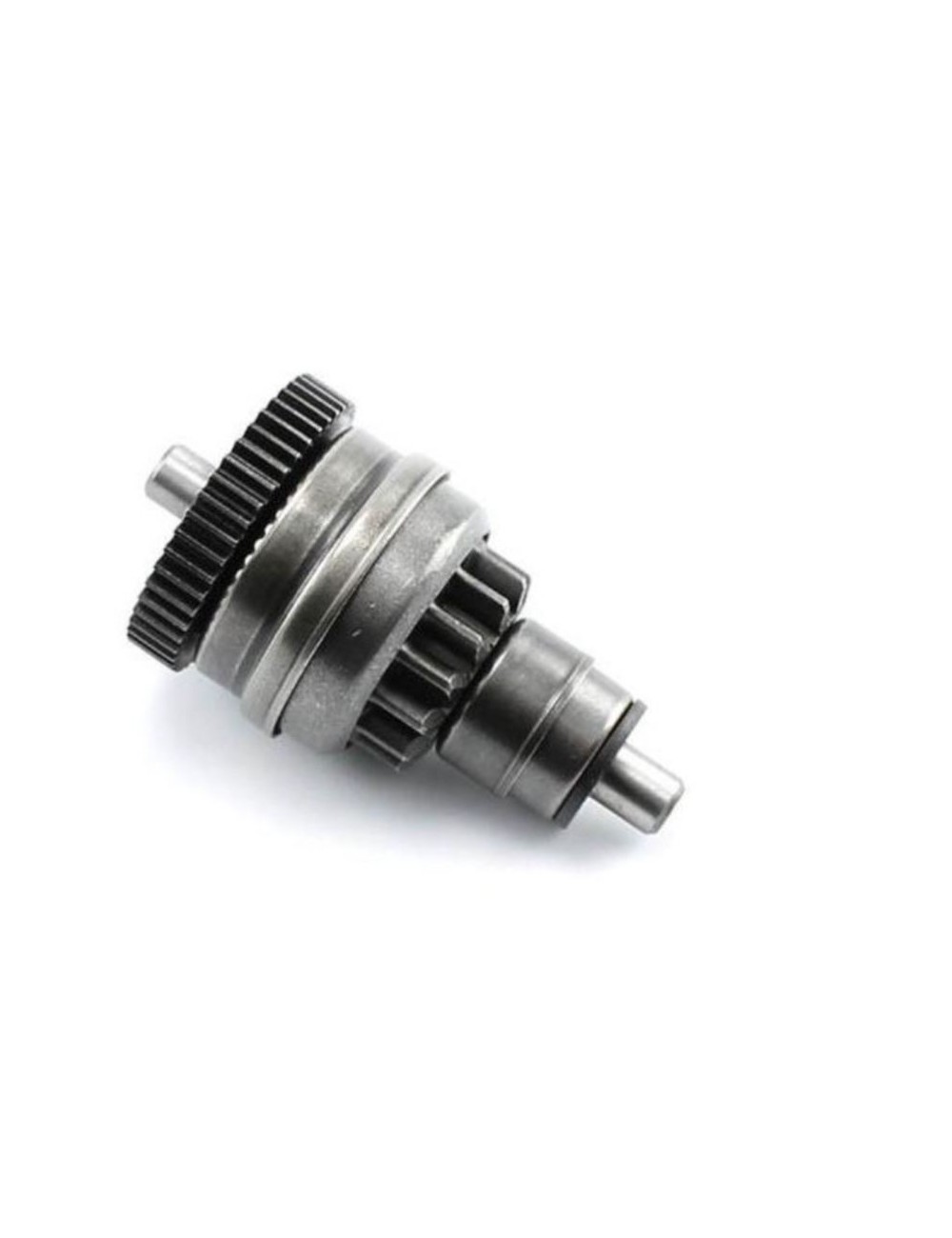

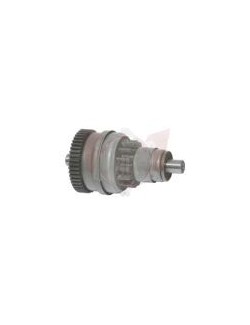

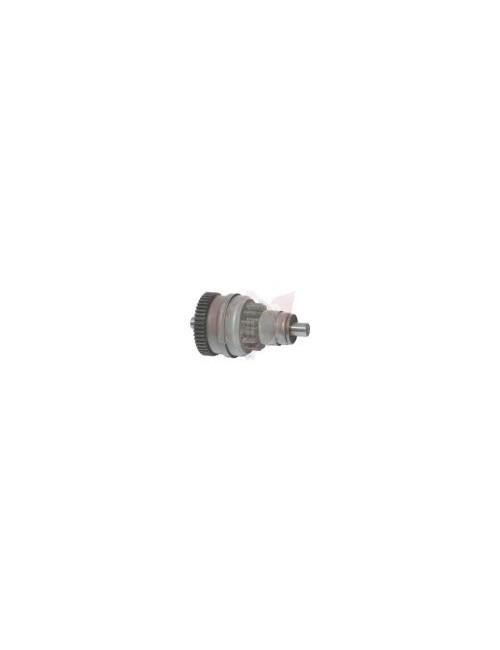

The Starter return (ref. 251552), often called "Bendix", is a complex mechanical assembly consisting of a mobile pinion on a helical axis. Its role is to project forward under the effect of centrifugal force to cross the start-wreath. Once the engine is launched, the return spring the retracts the retracts to prevent contact with the motor. It is a high precision piece that undergoes important shocks at each start-up.
