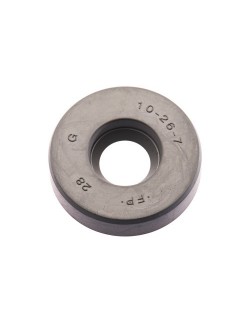

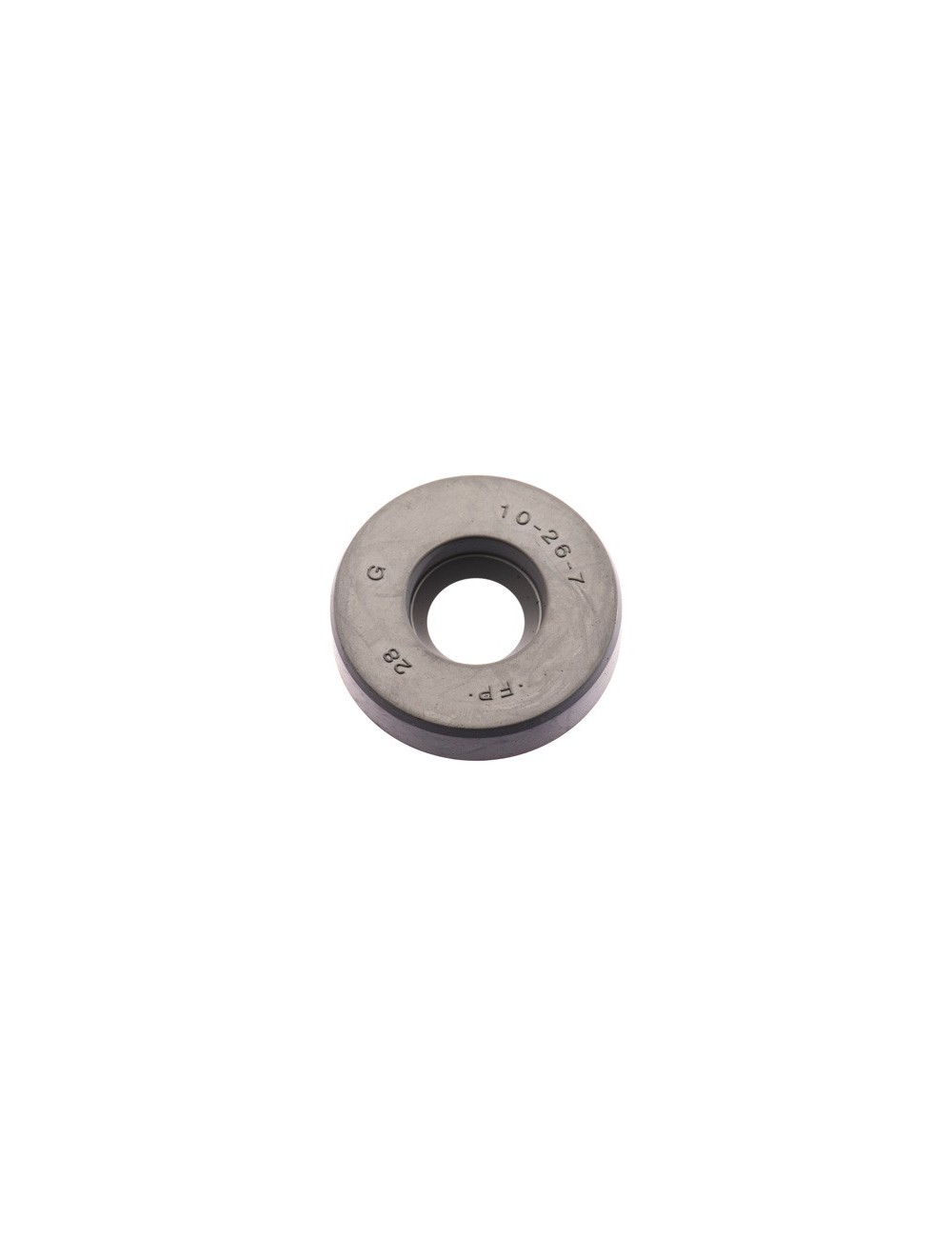

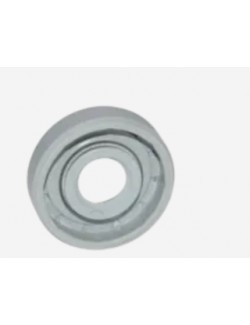

Spi 10x26x7 water pump seal Rotax Max (12) or (35)

The Bearing 6005 C4 Koyo (25x47x12 mm) is a "racing" version of the standard 6005. Its peculiarity lies in its design to 10 balls (against 8 or 9 on standard models) and its internal game C4. This configuration is specifically chosen by the motorists to reduce the unit load on each ball and offer maximum freedom of rotation at very high operating temperatures.

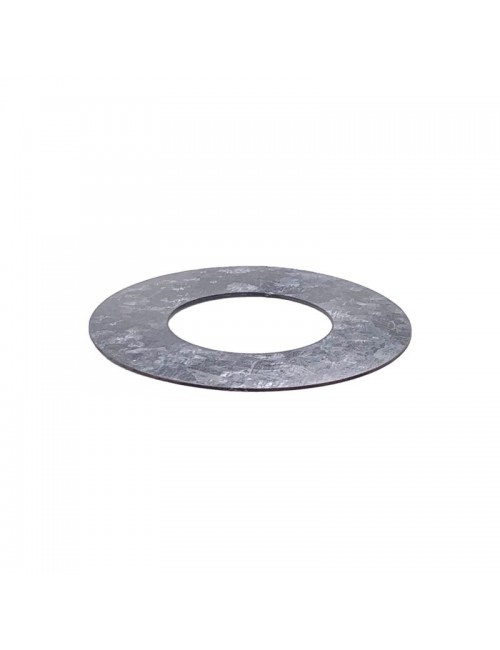

The Wedge 8.5x15x0.50 (ref. 227480) is an adjustment technique washer. Mainly used on the axes of internal sanding (such as the water pump shaft or some intermediate axes depending on the versions), it allows the side game moving components. Its calibrated thickness of 0.50 mm Guarantees that the rooms are neither too free (vibration), nor too constrained (heating and friction).

The Intermediate pinion pawn 6x40 (ref. 229430) is the rectified cylindrical axis on which the intermediate sprocket of the peancial sanding is rotated. With its precise dimensions of 6 mm in diameter for 40 mm long, it ensures the perfect positioning of the gears. A pion in good condition is the guarantee of a silent transmission and a regular wear of the teeth of the gears (plastic or steel).

The FAG 6206 crankshaft bearing (ref. 932434) is the component that supports the colossal efforts of the high speed engine (more than 14,000 rpm). Fabricated Fag, world leader in precision bearing, this model is specifically selected by Rotax For its ability to withstand significant radial loads while minimizing friction. Its internal game (usually C3) is calculated to provide perfect fluidity once the engine is mounted in temperature.

The Water pump (ref. 229470) is a small steel precision cylindrical pin. Its role is to ensure rigorous alignment between the motor housing and the water pump cover. A good alignment is crucial for the water pump shaft to be perfectly centered in its spite joints and its bearings, thus avoiding any premature wear or cooling liquid leak.

Guarantee a perfect seal and optimal freetoping of your low engine with the Oil breather plug Rotax M18x1.5 thread,

The Thunder-end needle cage (often referenced under the norm Hk1010, Ref. Rotax 232460) is a small needle bearing housed in the engine housing or launcher support. It receives the end of the electric starter shaft. Its role is crucial: it allows the tree to rotate at very high speed during the start phase with a minimum of friction, while supporting the radial stresses during the haling.

The Bearing 6302 TN9C3 (ref. 232434) is a high performance technical room used in the low engine Rotax To support the end of the balancing tree (pendulum) or some transmission axes. Its dimensions are 15 x 42 x 13 mm. The specification NWT (polyamide cage) associated with the suffix C3 Guarantees excellent resistance to high regimes and a significant reduction in mechanical noise and vibration.

The Crankshaft spy seal 25x38x7mm fpj (ref. 650485) is specially designed for the right side of the engine (clutch side). Smaller than his peer side ignition, he seals between the pump housing and the oil pan of the gorgeous. His technology FPJ in Teflon Guarantees exceptional heat resistance and drastically reduces friction on the silk of the crankshaft, thus releasing more power at the wheel.

The SKF 6302 TN9 / C3 Bearing (-dimensional 15 x 42 x 13 mm) is one of the most technical components of internal sanding. Its design combines a fiberglass reinforced polyamide cage (Tn9) and an increased radial internal game (C3). This specification is crucial for competition engines because it helps with very high rotational regimes while minimizing the power losses by friction.

The Right water fitting (ref. 224094) is the threaded tip that attaches directly to the motor housing to allow the cooling hose connection. Made of treated steel or brass according to the series, it ensures a passage of constant flow to the water pump. Its "right" design is standard on the majority of montages Rotax To facilitate the path of the hoses along the chassis.
