Full description: small by size, large by the function
Why is this little pawn vital for your water circuit?
-
Geometric alignment: It ensures that the pump cover is placed exactly facing the internal ducts. Without him, the lid could be slightly offset, creating constraints on the axis of the turbine.
-
Easy assembly: It serves as a guide when closing the pink housing or the water cover, allowing the screws to fall stack in front of the threads without forcing.
-
Vibration stability: By locking the side position of the parts, it prevents the shear of the fixing screws under the effect of high speed vibrations (14,000 rpm).
-
High quality steel: Designed not to corrorode despite the constant proximity with coolant and moisture.
💡 Michel's trick
"It's the part that we lose most easily when you clean up his housings at the ultrasound and brushbar! We believe it's just a detail, but if you go up your pump cover without the centering pawns, you risk to pinch your seal or to decentrate the axis. My advice: always checks that there is good two (depending on the assembly) and they are not overwritten. If you have to go out, uses a flat clamp without marking the metal. A labeled pion is a guaranteed galley to close the engine cleanly! "
🎓 TUTO: installation and precautions
-
Cleaning the orifices: Before inserting the pawn, make sure the housing in the aluminum housing is clean (no limestone deposition or old seal).
-
Insertion: The pawn must return "fat" in the crankcase. If you have to tap, use a small plastic mallet to not watch the end of the pawn.
-
Verification: Once the panel is in place, present the pump cover. This one must fit perfectly, without sensitive side game.
-
Safety: If the pawn falls from its home, the crankcase may be slightly worn. You can use a drop of bearing seal (green Loctite) to keep it permanently in the crankcase.
✅ Features
-
Reference Rotax : 229470
-
Material: Rectified steel
-
Dimensions: Original standard Rotax
-
Compatibility: Rotax 125 Max (Micro, Mini, Junior, Senior, Master) and DD2.
Note Magickart: Sold individually. For a complete repair of the pump, we recommend always having one or two pawns in advance in your "engine" toolbox.
FR401.009
Specific References
in the same category

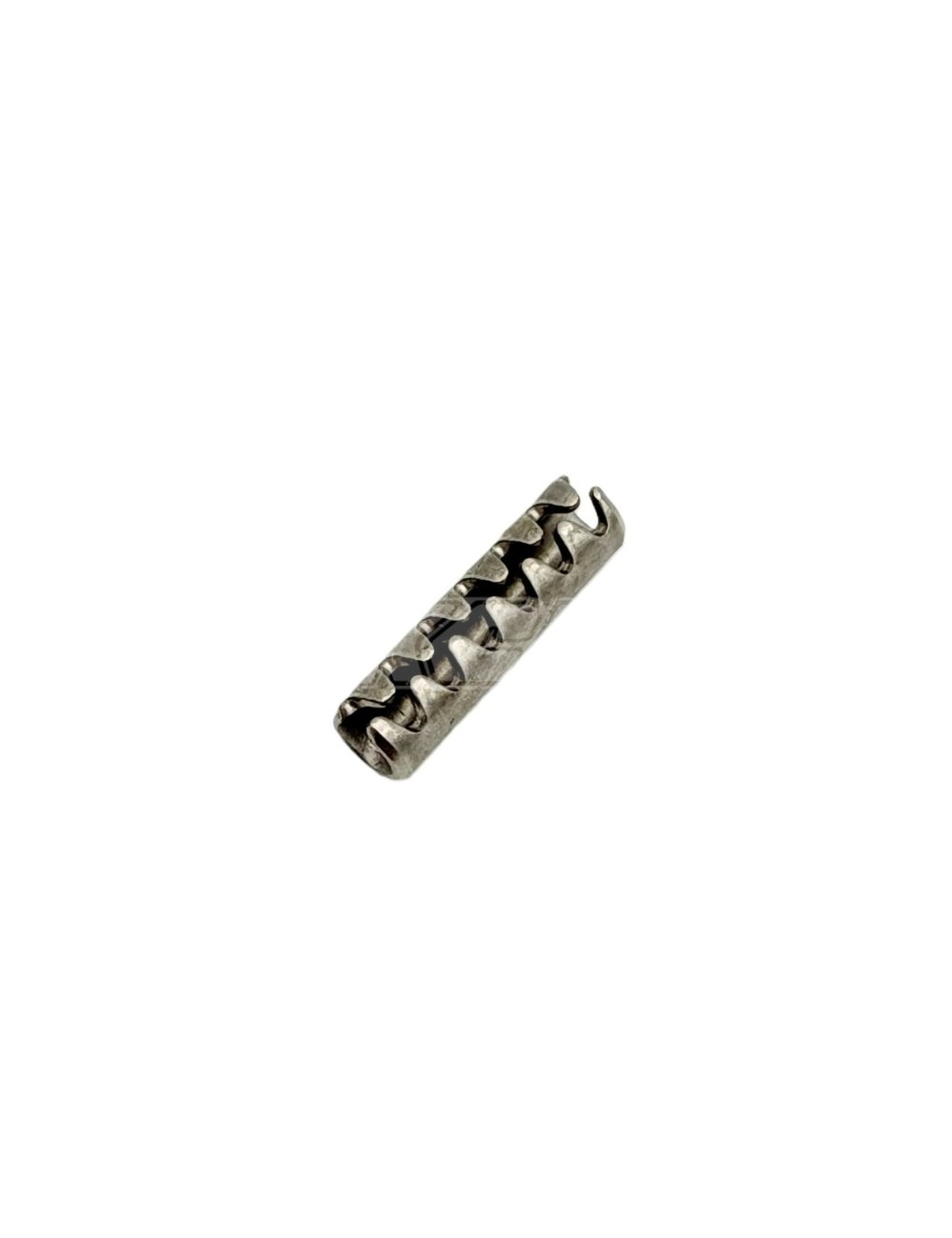

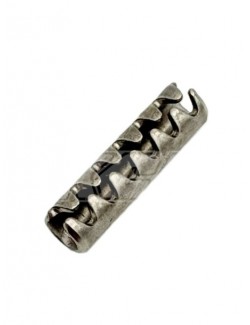

The Water pump (ref. 229470) is a small steel precision cylindrical pin. Its role is to ensure rigorous alignment between the motor housing and the water pump cover. A good alignment is crucial for the water pump shaft to be perfectly centered in its spite joints and its bearings, thus avoiding any premature wear or cooling liquid leak.
