List of products by brand Tm racing
The Copper cylinder head gasket 0.05 mm is the finest thickness available for engines TM KZ-R2. In a competition motor as the KZ, every hundredth of a millimeter count. This seal makes it possible to adjust with surgical precision your squish (Height between the piston and the cylinder head at the high-standing point) to optimize the combustion without risking the detonation.
The choice of copper guarantees excellent thermal conductivity between the cylinder and the cylinder head dome, thus promoting a homogeneous cooling.
The Copper cylinder head gasket 0.10 mm is probably the most used thickness by KZ drivers. It is the ideal adjustment base for the engine Tmkart kz-r2. This seal makes it possible to obtain a powerful volumetric ratio while maintaining a necessary thermal safety margin during the disputed finals.
Thanks to its pure copper composition, it provides ultra-fast heat transfer to the cooling circuit, thus avoiding the phenomena of detonation (rattling) that often occur with joints of less good quality.rt
The Copper cylinder head gasket 0.20 mm is the thickness "comfort" and safety for engines Tmkart kz-r2. In the quest for performance, this seal is used by drivers and mechanics to increase the height of squish (Space between the piston and the cylinder head) to make the engine more flexible or to compensate for a new "high" piston.
Copper is preferred in competition because it ensures a Exceptional thermal dissipation, transferring the calories from the combustion chamber to the cooling circuit with efficiency much greater than the conventional joints.
This perforated copper washer is a critical piece between the cylinder head dome and the cylinder. It fills two essential functions: ensure a perfect thermal seal under high pressure and allow the preparer to adjust the squish (Piston distance / cylinder head).
Copper material: Copper is used for its ability to deform slightly during tightening, ensuring total sealing, as well as for its optimal thermal conductivity.
Perforated design: The perforation (detail 6 of the exploded view) allows the passage of the coolant for efficient thermal regulation of the combustion head.
Multi-thickness: Available in a wide range of thicknesses to accurately adjust the room volume and compression ratio.
The Cylinder base joint for TM Kart R1-R2 is one Essential sealing room, designed to ensure a Perfect sealing Between the cylinder and the base on the engines TM KZ10B, KZ10C, KZ R1 and KZ R2. This seal is indispensable To avoid Cooling or compression fluid leaks, guaranteeing a optimal functioning engine and a Increased longevity internal components.
Made in Heat resistant materials and pressure, this seal is available in different thicknesses (0.05 mm or 0.50 mm), allowing to adjust the cylinder height and optimize the Engine performance according to the desired settings.
The Full cylinder head KZ-R2 black total is not just a piece of style; It is a critical component for the performance of your engine. This special version benefits from full black surface treatment which, beyond its devastating look, promotes thermal dissipation.
Designed specifically for the engine Tmkart kz-r2It optimizes the flow of coolant around the combustion chamber to maintain constant performance, even during the most trying finals under strong heat.
The engine TM KZ R3 – Full Black represents the latest developments of the TM Racing, certified for competition and designed to offer maximum performanceflawless reliability and one exclusive design. This engine is complete delivered and ready to use, including all necessary components for a immediate installation and one optimal driving experience.
With his version "Total Black", this engine is distinguished by its black Edition componentsoptimized cylinder preparation, 1 new high performance clutchenhanced gearbox and one robust engine housing, ensuring increased powerexceptional durability and one high-end aesthetics
The external cylinder head seal is a high diameter o-ring that ensures the peripheral sealing between the cylinder and cylinder head cover on the latest generation TM Racing motors (KZ10C, R1, R2). Unlike the internal seal (which seals the combustion chamber), the mission is to contain the coolant and to avoid any leakage to the outside of the engine.
The clutch disc (marker)9on the broken view) is an original high performance friction partTM Kart. Designed to withstand the extreme temperatures and enormous torque constraints of the 125cc gearbox (KZ) engines, it ensures a perfect connection between your engine and the gearbox. Its specific trim is designed to offer a progression at the start while guaranteeing an immediate grip as soon as the pedal is released.
Pair of half-trees for axes of 22mm in KZ R1
The price includes the two half-trees for axis 22mm
For engines kv95 / 92, K7, K8, K9, K9B, K9C, KZ10, kz10b, kz10c, kz r1

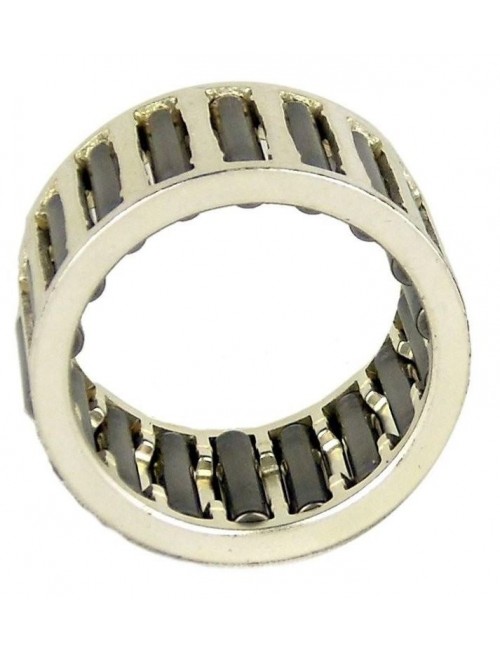

The Needle Cage IKO KTZ (B2) is the reference component used in first goes by the TM Racing factory. Designed to support the extreme stresses of high efficiency motors, it provides fluid rotation and maximum durability of the embiellent.
Grade B2 (precision): The B2 classification guarantees an extremely tight, indispensable manufacturing tolerance for a perfect fit between the 22 mm coat and the rod.
High quality needles: The rollers are designed to withstand rotating speeds exceeding 15,000 rpm while effectively dissipating heat.
Reliability of origin: By choosing the original TMKART part, you complete a total compatibility with the brand's sleeves and connecting rods, thus avoiding premature engine breaks related to excessive or insufficient game.
The internal cylinder head is the most demanded element of your high engine. Located at the point of contact between the cylinder head dome (insert) and the cylinder, it has the critical role of sealing the combustion chamber.
This seal in Viton High Performance is the standard for the entire line of TM Racing competition engines, including the last born: the TM R3. It must withstand colossal pressures and extreme burned gas temperatures. A seal in perfect condition is the only guarantee of constant motor power and protection against coolant intrusion into the cylinder.
The internal cylinder head is the most demanded element of your high engine. Located at the point of contact between the cylinder head dome (insert) and the cylinder, it has the critical role of sealing the combustion chamber.
This seal in Viton High Performance is the standard for the entire line of TM Racing competition engines, including the last born: the TM R3. It must withstand colossal pressures and extreme burned gas temperatures. A seal in perfect condition is the only guarantee of constant motor power and protection against coolant intrusion into the cylinder.
Discover the Joint pouch KZ10 B/C (except SPI), an essential element for competitive karting engines. Designed specifically for motors KZ10B and KZ10C, this pouch includes all the necessary joints, with the exception of the SPI seal, to ensure the proper functioning and longevity of your engine.
The Complete SPI joint kit for TM Racing KZ engines is an indispensable spare assembly of origin manufacturer (Ricambi Originali TM Racing). As illustrated in the reference picture 8722.jpgThis plant sealed bag gathers the entire lip joints needed to ensure absolute tightness of your bottom-motor during a full revision.
On a 2-time high efficiency competition engine as the TM Racing blocks, the slightest air intake or internal leakage can be catastrophic. The crankshaft spi joints retain pre-compression in the pump housing, while the other SPI seals preserve the gearbox oil circuit and the selector axle. Designed in fluorocarbon elastomer type Viton or high specification polymersThese factory joints tolerate crazy linear rotation speeds (up to 16,000 rpm) and total thermal and chemical resistance to fuel fuels or not and competitive oils
The Rod 22 cpl with full axis (full) is the solution chosen by many motorists seeking to maximize the rigidity of the embiellent. Unlike pierced versions, the solid coast is a contact surface and uninterrupted structural mass.
This kit is designed to support huge engines combustion pressures TMKART KZ10B, R1, R2 and R3. It guarantees minimal deformation of the extreme carbon coat, thus preserving the perfect alignment of the crankshaft masses during brutal acceleration phases.
The Rod 22 cpl is the absolute reference for competition engines Tmkart. This complete kit is designed to support the extreme mechanical stress of gearbox motors (more than 15,000 rpm).
Its peculiarity lies in its Rod Head Axis Percé (Ø 6 mm). This design allows optimum oil circulation to the connecting rod head cage, reducing the friction and the operating temperature, which extends the lifetime of the crankshaft on the pushed engines like the R1, R2 and R3.
The 0.30 mm base gasket is an important thickness in the adjustment range Tmkart. By raising the three tenths cylinder, you move the opening times of your transfers and your exhaust light up.
This is the privileged setting for fast circuits with long straight lines because it allows the engine to "better breathe" in the towers. This seal is perfectly compatible with the entire line of gear motors: KZ10B, R1, R2 and the new R3
The 340 mm base gasket is one of the most important thicknesses of the range Tmkart. It is mainly used in two scenarios:
Adjusting extreme diagrams: For motorists wishing to raise the cylinder to the maximum in order to privilege the pure power at very high speed.
Mechanical compensation: To adjust the cylinder height when using pistons or specific connecting rods whose odds are moving away from the factory standard.
This seal is designed with a precision cut compatible with the entire lineage Kz10b, r1, r2 and brand new r3.
The Base gasket 0.50 mm is a centerpiece for motorists. It is mainly used to:
Adjusting the rod: Essential when using longer rods or pistons with a different cap height of the standard.
"Fast track" diagrams: Allows you to raise the cylinder significantly to maximize the opening times of transfers, ideal for "long straight" type circuits.
Carter volume: Increasing the thickness to the base increases the dead volume of the bas-engine, which can make the engine less "nervous" and more progressive on low adhesion tracks.
The 310 mm base gasket is a fundamental technical piece for the preparation of your engine Kz10b. Unlike the cylinder head gasket that can only affect the compression, the base gasket changes the cylinder position with respect to the crankshaft.
At 0.10 mm, this seal is ideal for stalking your diagrams (opening of intake and exhaust lights) with extreme finesse. It is often used alone or stacked with other thicknesses to reach the value of squish and the perfect opening times.
The Valve box seal of 0.5 mm is located between the motor housing and the flap box. In a 2-time competition engine such as TM KZ10C or the R Series, any leak at this level (air intake) can cause an air / gasoline mixture, causing erratic performance or, in the worst case, a motor tightening.
Standard thickness: The thickness of 0.5 mm Provides excellent compression capacity to compensate for any microcreme imperfections of the seal planes.
High quality material: Designed with hydrocarbon resistant joint paper (petrol, additives) and constant vibrations of admission.
Extended compatibility: This seal is the standard for modern KZ engines from TMKART.
