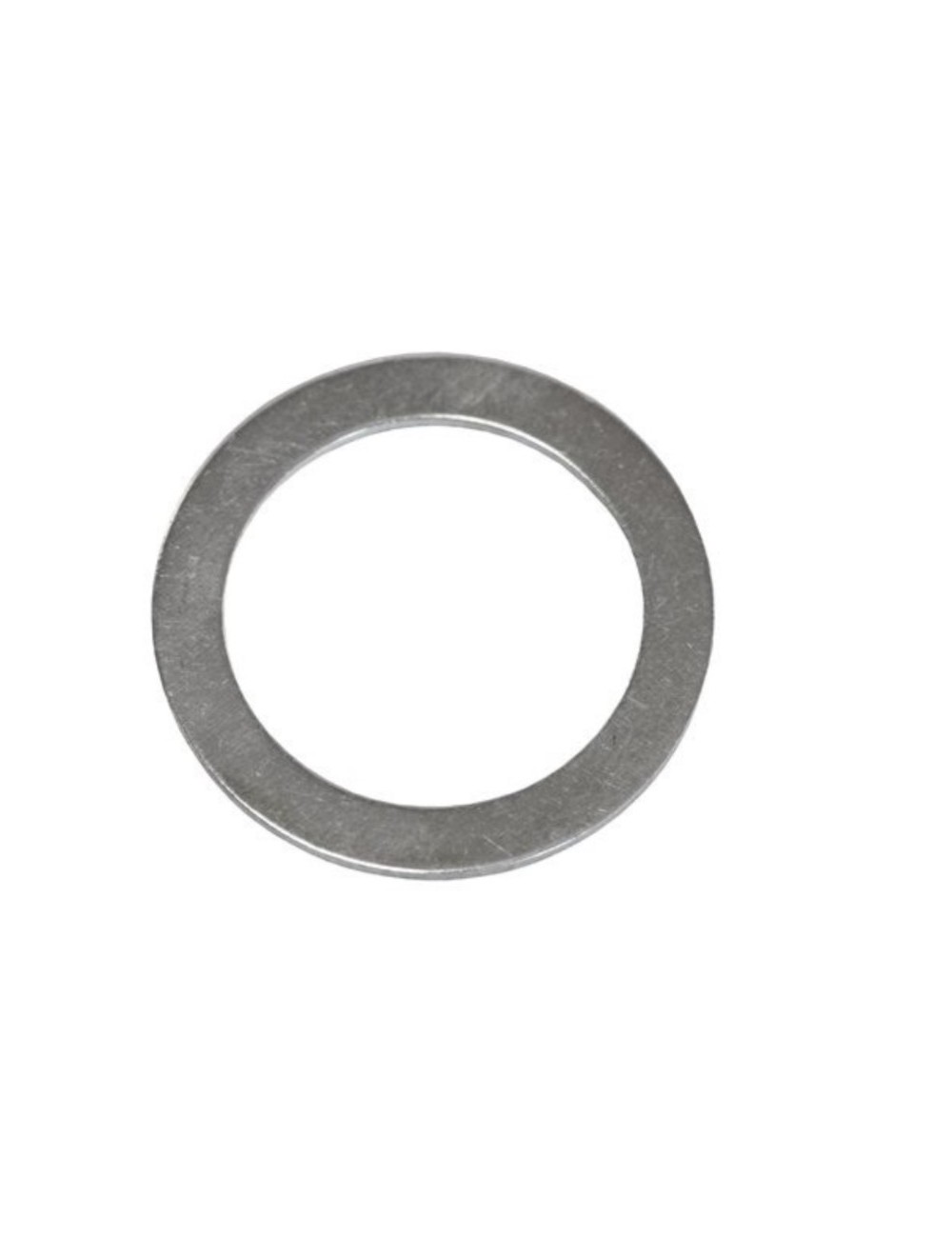

Hold 30 x 18 x 3 TMKART

Essential component of clutch kinematics, the dimensional hold 30 x 18 x 3 mm is designed specifically for Kart Kart KZ-R3 kart motors (visible on the official burst at the marker 25). Machined with extreme precision tolerances, it guarantees the perfect positioning of the elements of the shaft and the clutch hub, avoiding any axial parasitic game under the effect of the high regimes and the strong constraints of the competition.

A must-see original part for maintenance, repair and reliability of your TM engine block.

Main features:

• Product: CALE / CLUTCH WASHER

• Dimensions: 30 x 18 x 3 mm

• Sploter mark: Number 25 (Clutch / Clutch KZ-R3 Table)

• Compatibility: TM Kart KZ / KZ-R3 / Total Black 125cc

• Availability: In stock on Magickart.eu

The history and usefulness of the product (track side)

In a 125cc gearbox with gearbox (KZ), each spacer and hold plays a critical role in the distribution of axial loads on the primary shaft and clutch bell. Subjected to harsh test during the arrested departures and violent downsides, this original TM kart hold guarantees the geometric constancy of the entire clutch, avoiding the abnormal wear of the adjacent parts.

The mounting tuto (step by step)

To install or replace this hold when revising your TM clutch:

• Disassembly: Remove the clutch housing, disassemble the entire bell and hub by following the buzzer view.

• Cleaning: Clean all parts thoroughly and the axle to remove any trace of burnt oil or metal residues.

• Setting up: Position the hold 30x18x3 (marker 25) at its exact location on the axis, checking its perfect places and its free positioning.

• Reassembly: Reassemble the hub and clutch bell, tighten to the torque recommended by the manufacturer and control the freedom of rotation before closing the crankcase.

Michel's Tip (Paddock Expert Council)

"During each complete review of your TM KZ clutch, carefully inspect the surface condition of your shims and wedding washers. A marked, dug or slightly veiled shim can disrupt the axial clearance of the clutch and cause a bad loose or parasitic skating. For the price of a new slaby, never take a risk on a critical internal component! "

FAQ SEO (Frequently Asked Questions)

• Q: At what exact location amounts to this shim on the TM KZ-R3 engine?

  • A: On the official exploded view of the clutch (Tavola 6 / KZ-R3), this stall corresponds precisely to the number 25, located at the mounting of the axis and the clutch hub.

• Q: Is this part a certified origin TM Kart?

  • A: Yes, it is a spare part of the original TM Racing constructor, ensuring total compliance with machining coasts and original materials.

• Q: Why is it important to respect the exact dimensions (30x18x3)?

  • A: The thickness of 3 mm and the inner / exterior diameters are calculated at the thousandth to respect the functional games of the clutch. A non-conforming room would alter the alignment of the transmission.
