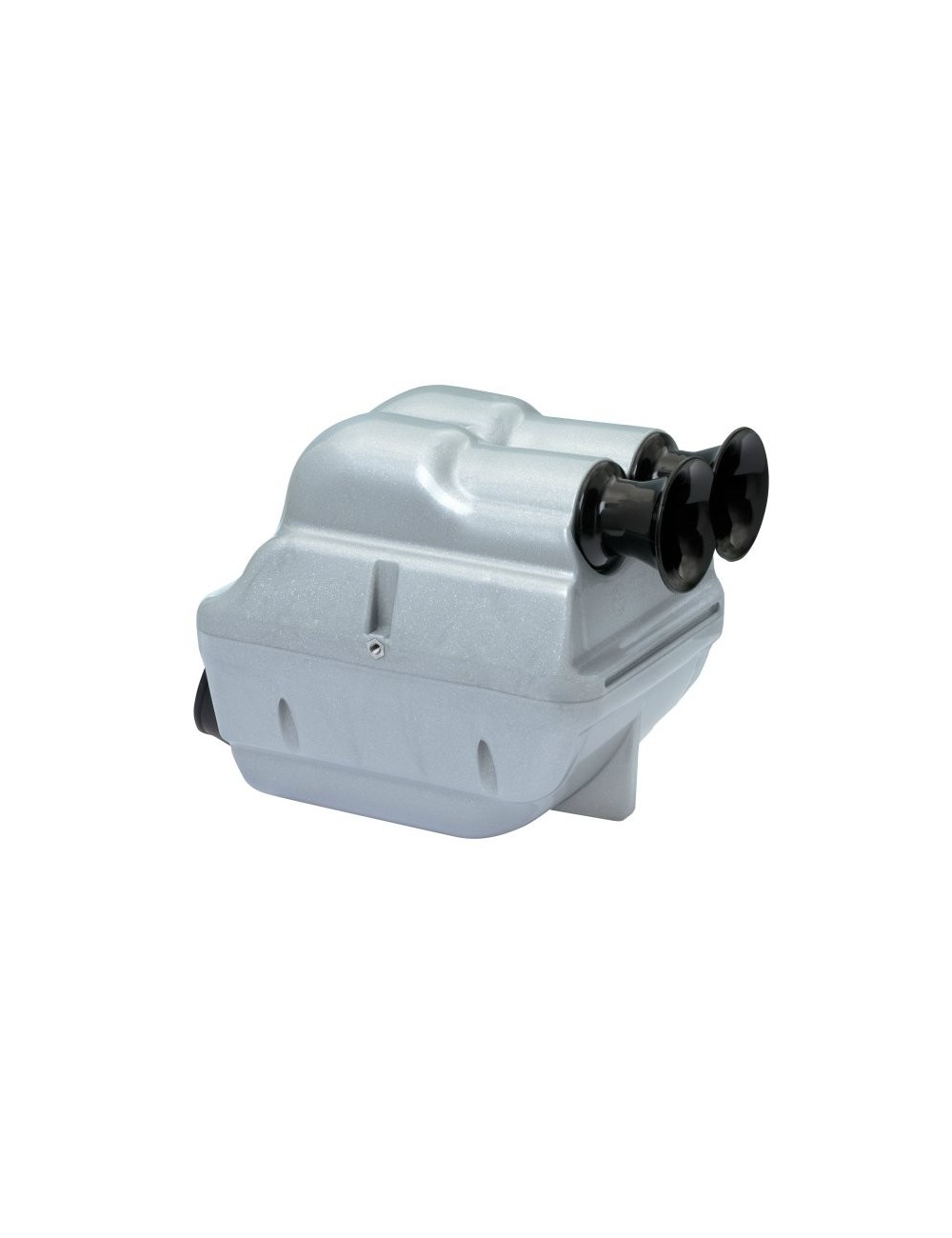

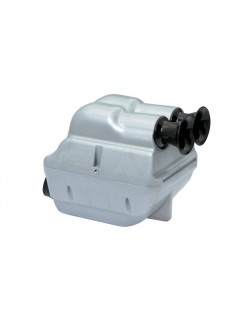

Silver KG NITRO air box

KG NITRO Silver Air Box – CIK/FIA Approved (Generation 2024-2026)

The air box KG NITRO is more than just an admission silencer: it is a real performance tool used on the largest international events. Its aerodynamic design optimizes the flow of air to the carburettor while respecting the highest sound standards. Its silver finish reflects the heat to maintain a cooler intake air.

Available versions (Menu Deroulant):

• NITRO D23 (Ø 23 mm): Specific to categories OK and OKJ. Approval 7/SA/24.

• NITRO D30 (Ø 30 mm): Specific to categories KZ2 and KZ (box engines). Approval 8/SA/24.

Contents of the Pack:

• Complete KG Nitro housing (body and lids).

• Intake trumpets (diameter according to version).

• Carburettor connection sleeve.

• Internal air filter High density.

• Removable rain protection (indispensable for wet conditions).

Magickart Loyalty Program: By buying this air box, you collect up to 32 loyalty points. Your cart will total 32 points which can be converted into a discount voucher of 3,20 € at your next order!

Michel's Council (Magickart): Breathing the engine

"The KG Nitro air box is the favourite of motorists. My expert advice: the choice between 'dynamic' (roadside) or 'static' (rearward) configuration radically changes your carburation. In dynamic, you gain power at high speed thanks to air gavage, but be careful not to roll too poor!

The essentials with your KG NITRO box:

• Air filter cleaning kit: A clean filter is horses won. Never let him crack himself.

• Temperature sensor Alfano (A-261) To monitor your engine, because a better intake changes your thermal settings.

• Additional stainless steel clamps: To ensure that the sleeve does not move despite the vibrations.

A little pro secret: When it rains, install the rain protection provided. It is designed to block water without choking the engine. At Magickart, it is advisable to always check the seal of the sleeve on the carburettor with a quality collar. An air intake here, and it's the engine break!"

Tuto : Mounting and Configuration

1. The Sleeve: Attach the sleeve to the carburettor before installing the box on its support.

2. Orientation: * Dynamic position: Forward trumpets to maximize air pressure at high speed.

   • Static position: Rearward trumpets for a more stable and less turbulence sensitive carburation.

3. Interview: After each racing weekend, remove the internal filter, wash it with the special degreaser and lightly oil it (filter oil spray).

4. Waterproofness: Check that both parts of the box are clipped to prevent unfiltered air entry.

Why choose KG NITRO at Magickart.eu?

• Last approval: You receive 2024 models that comply with the latest CIK/FIA regulations.

• Rain Protection Included: Unlike some dealers, we deliver the complete pack ready to roll.

• Expertise Competition: Need advice on diameter (23 or 30 mm)? Michel is here to guide you according to your engine.
