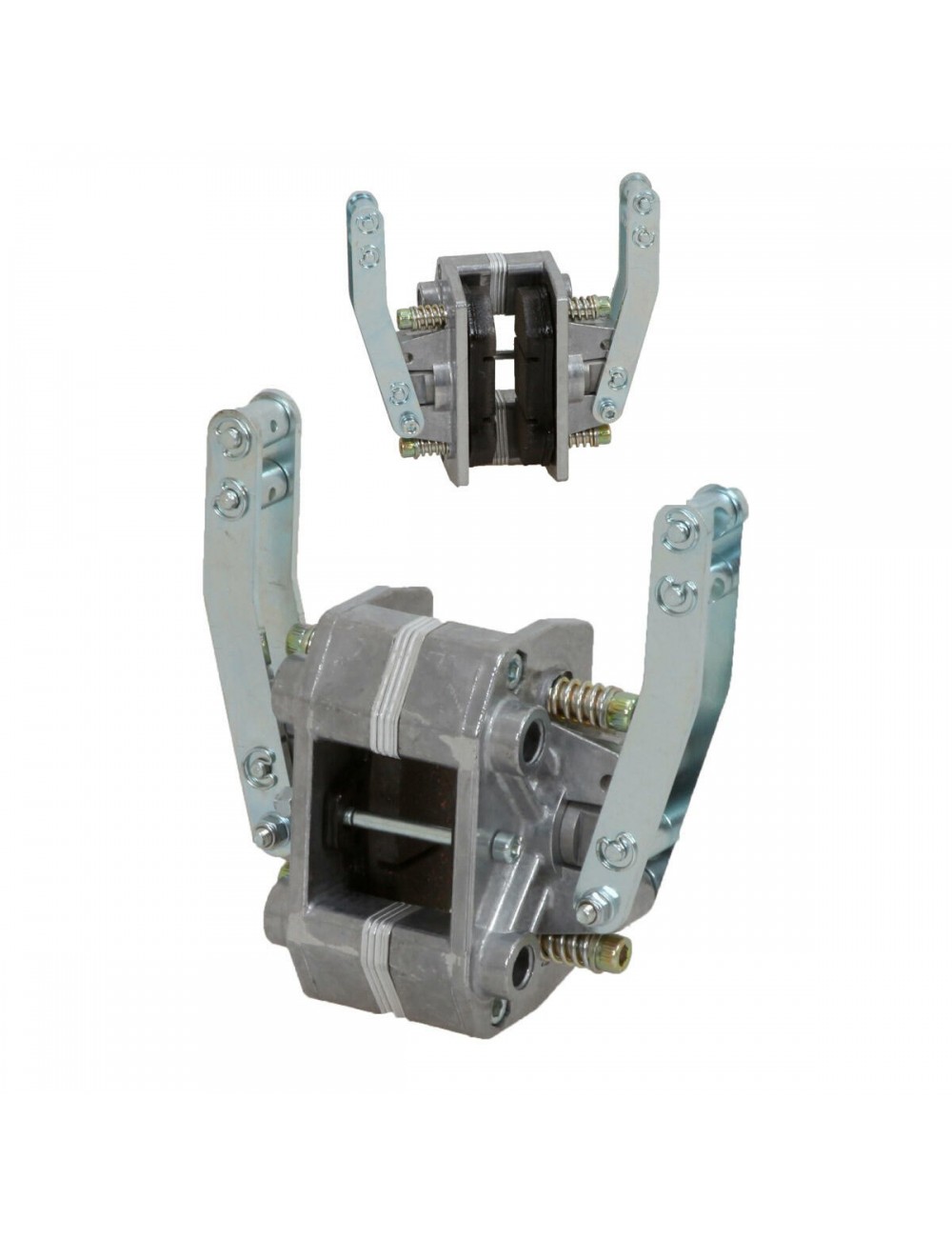

Why choose a cable mechanical caliper?

1. Easy maintenance: No purge, no corrosive brake fluid, no fleeing joints. A simple adjustment of the cable voltage is enough.

2. Maximum reliability: Fewer moving parts means less risk of failure on the track. The system remains operational even after long periods of stop.

3. Lightness: Ideal for small displacement karts or kids karts where each kilo account for performance.

4. Universal: Adapts to many types of caliper brackets with its standard center distance.

💡 Michel's trick

"The cable brake is rustic but it works! My pro tip: To have a firm pedal, do not use standard bike cable. Take a Reinforced brake cable and especially a quality sheath (Teflonne if possible). If your sheath crashes when you brake, you lose all the power. Little trick at assembly: Lightly grease the caliper cam so that the return is done without hitch. And above all, check the wear of your plates regularly, because unlike the hydraulic, you have to compensate the wear manually by trying the cable! "

🎓 Installation & Setting Guide

• Mounting: Attach the caliper so that it is perfectly centered with the brake disc.

• Setting the game: Use the adjusting screw (often located on the bracket lever) to bring the pads closer to the disc closer to the disk without it being rubbed.

• Safety: Always check that the cable stop is perfectly tight. A drop of brake net on the fixing screws is highly recommended.

⚙️ Technical specifications

• Command type: Cable mechanics and cam.

• Material: Treated steel body or high resistance alloy depending on.

• Compatibility: Standard brake discs (thickness 3mm at 5mm).

• Platelets: Comes with a set of pre-mounted platelets.

✅ Why buy your stirrup at Magickart?

• Stock available: Fast delivery not to stay at the booth.

• Technical advice: A question about compatibility with your chassis? We answer you!

• Value for money: The most economical solution to hand over a kart.

Note Magickart: Remember to order also a brake cable new and an greenhouse-cable For a complete and secure mounting!
