Essence Filter Dell'Orto Origin – Ref. 11957A (Speech view n°38)

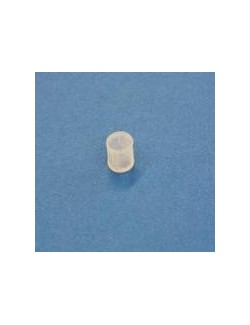

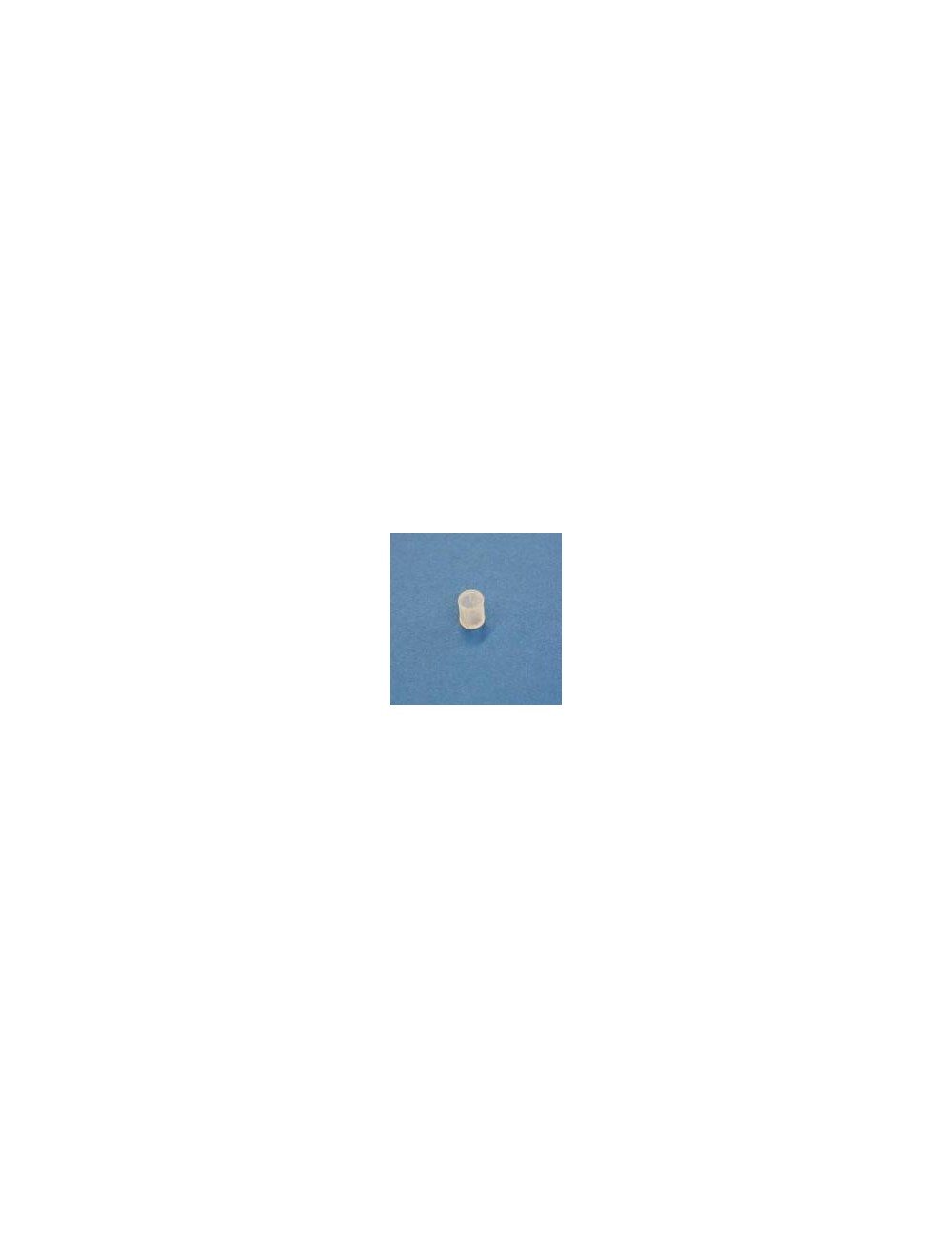

This high precision sieve filter is an original part Dell'Orto. It is located directly at the entrance of your carburettor's gasoline arrival. Its ultra-fine mesh is designed to stop impurities from the tank or jerrycans, thus ensuring a clean fuel flow to the tank.

Specifications Technical:

• Reference Origin: 11957A.

• Position: Number 38 on the bursting view Dell'Orto.

• Compatibility Carburetors: * VHSH 30 (KZ Drives / Gearbox).

  • VHSB 34 (Motors Rotax Max, Max Evo).

  • Compatible with most Dell'Orto tank carburetors.

• Material: High resistance Nylon to hydrocarbons and additives.

Magickart Loyalty Program: By buying this product, you collect up to 1 loyalty point. Your cart will total 1 point which can be converted into a voucher €0.10 at your next order!

Michel's Council (Magickart): The small filter that avoids big trouble

"We don't see him, we often forget him, but he saves your engine! My expert advice: A cracked filter is a tank that fills less quickly, which leads to impoverishment of the high-speed mixture... and paf, clamping!

The essentials with your filter 11957A:

• Filter cover seal (Ref. 6159): If you remove the filter, the small O-ring from the lid is often crushed. Change it to prevent fuel leaks on the engine.

• Durite neoprene essence: A new durite does not go into pieces inside, which prolongs the life of your filter.

• Carburettor cleaner: A spray blow into the filter housing at each revision to drive away gum deposits.

A little pro secret: Do not clean this filter with the bellow too strong, you may tear the invisible mesh to the naked eye. If you see impurities in it, replace it with a new one. At this price, you don't take any risk with carburation. At Magickart, we always have two or three in the toolbox!"

Tuto: Filter maintenance (N°38)

1. Dismantling: Unscrew the central screw from the fuel supply lid (on the side of the carburettor).

2. Extraction: Gently remove the sieve filter with a small clamp or fine hook.

3. Inspection: If you see black dots or opaque veil, the filter is saturated.

4. Reassembly: Insert the new filter thoroughly into its housing. Check that the lid joint is in place before tightening the screw (do not tighten like a deaf, it's aluminium!).

Why choose Magickart for your Dell'Orto parts?

• Origin Certified: No copies, only parts from Dell'Orto Italy.

• Technical Expertise: We know every popped view number to avoid ordering errors.

• Send Ultra-Rapide: Order before 2pm, receive your room tomorrow to be ready for your weekend ride.
