(81) 20x48.8 mm x30 connecting crankcase Iame

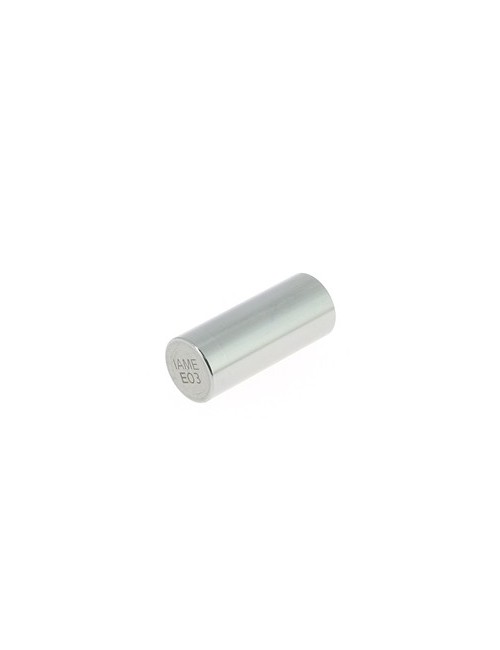

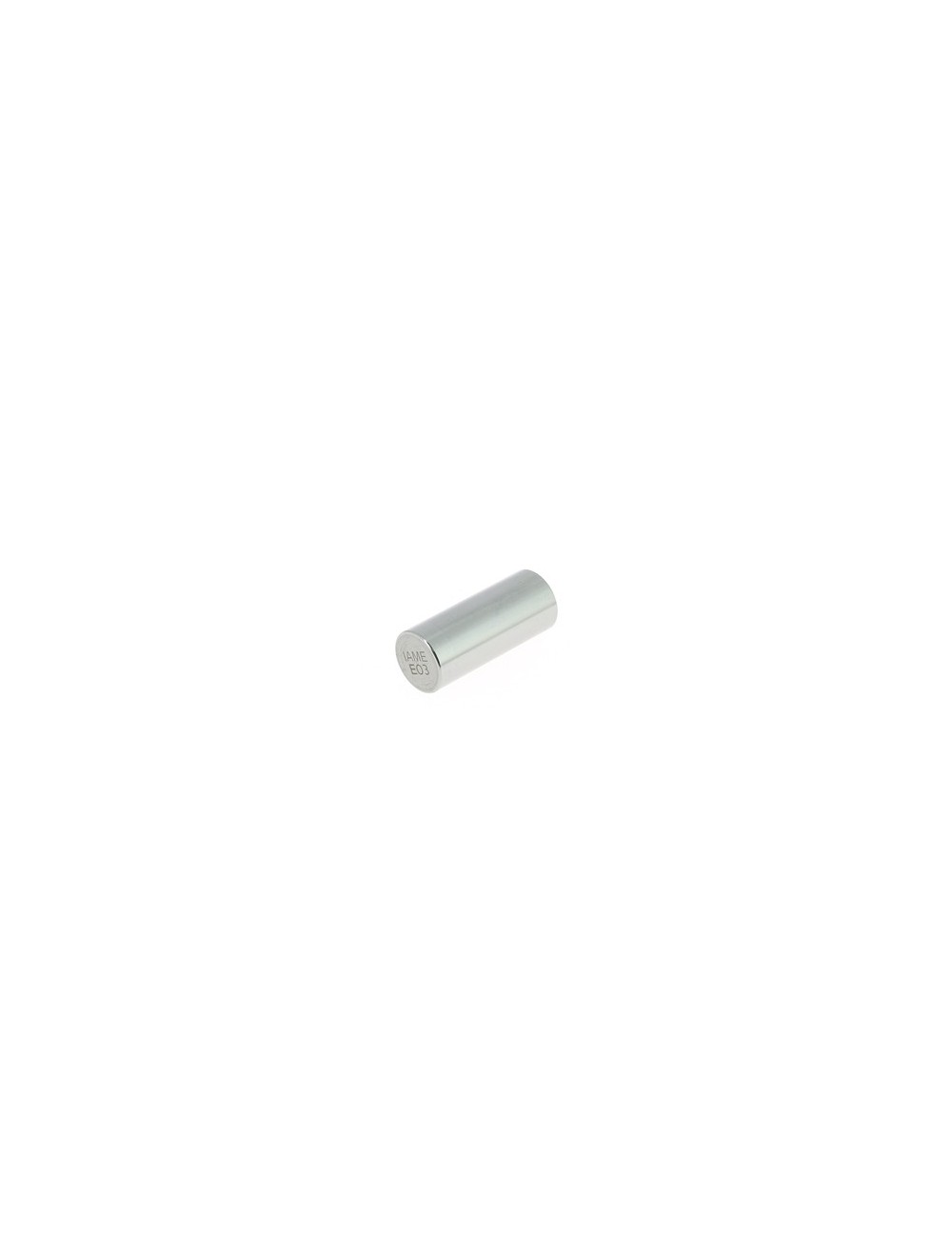

Iame X30 Connection Clearing - 20 x 48.8 mm

The Iame X30 Connection Clearing - 20 x 48.8 mm is one essential engine piece Crankshaft, providing connecting between the rod and the crankshaft of the X30 engine.

Designed according to the IAME manufacturer specifications, this curse guarantees a precise alignmenta High resistance to mechanical stresses and an Optimal reliability In use competition as leisure.

Engine compatibility

• IME X30 engine

• All versions compatible according to manufacturer specifications

Piece for operations of:

• low engine renovation

• Replacement following wear or shock

• Complete revision of the crankshaft

Technical characteristics

• Diameter: 20 mm

• Length: 48.8 mm

• Application: rod / crankshaft x30

• Quality: Origin Iame

Importance of the connecting rod

The coast is undergoing very high constraints:

• strong mechanical loads

• high-speed

• significant thermal variations

A worn or damaged coast can lead to:

• Excessive play of the rod

• abnormal vibrations

• severe motor break

Quality and reliability Iame

• Original partner

• Treatment and tolerances Competition

• High wear resistance

• Increased longevity of low engine

⚠️ Important recommendation

The Replacement of the connecting rod holder requires a specific tooling and professional know-how :

• Disassembly and realignment of the crankshaft

• False round control

• Reassembly in press

- the change of the connecting rod must imperatively be done by a karting professional.
Misinterpretation can lead to a irreversible motor break.

MagickArt Council

When replacing the Mainton, it is strongly recommended to:

• control connecting Rod

• replace bearings

• Check the complete alignment of the crankshaft
