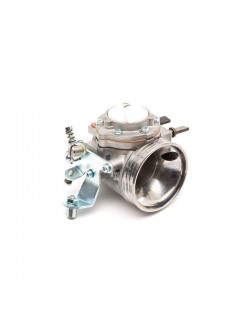

Tillotson HW-27 carburetor

The Iame air box foam is specially designed to fit the internal sleeve of X30 air boxes (including post-2018 models). Its role is vital: filter the incoming air without curbing the flow required for performance. It retains dust particles, gum debris (pick-up) and moisture, ensuring that only a pure air enters your Tillotson carburetor.

Go to the new official configuration! This29 mm valve box lid, recognisable by its colorblue, is the essential update for IAME X30 engines from 2024 onwards.

Designed by the competition department of IAME, this conveyor optimizes the gas flow entering the engine. By increasing the internal diameter to 29 mm, it allows more efficient crankcase filling, resulting in a significant improvement in torque and high speed power.

The Carbon valves top (Sold per pair) are designed for motorizations Iame the most demanding. By replacing standard valves by these high quality carbon models, you optimize the intake cycle of your engine. Their calibrated thickness between 0.24 mm and 0.25 mm Offers the perfect compromise between low-speed flexibility and rigidity needed for senior regimes.

RATE AT PICE

The IAME flavor box seal (format 90mm) is the element that ensures the airtight junction between the motor housing and the flap box. On a high-performance 2--time engine such as X30 or KA100, the slightest leak at this level (air intake) can make the carburetor adjustment impossible and cause a motor tightening risk by impoverishment of the mixture.

Secure the imposing amount of intake of your 125cc engine thanks to the Official plastic support for Iame X30 air box (generation 2018+). This original complete set is the essential structure piece for firmly holding the air filter housing above the carburetor, while absorbing the massive vibrations generated at high speed.

Developed by the Italian manufacturer during the technical evolution of category X30 in 2018, this support adopts an ergonomic form perfectly marrying the curve of the original air box. Made in a synthetic plastic that is both flexible and ultra-resistant, it displays a Feather weight of only 40 grams In order not to weigh down your engine support.

The kit comes complete and ready to install: it includes the rigid support, the Elastic holding strapas well as 2 O-rings sealing seals. These specific joints are essential to lock and stabilize the body of the intake muffler while ensuring the quick attachment of your rain cover in case of capricious weather.

REFERENCE (69) KA100

The 6x30mm valve box stud is a crucial technical scraper for IME X30 engine. Unlike a conventional screw, the stud remains fixed in the housing, which preserves the threads of aluminum during frequent disassemblies for cleaning the carburetor or checking valves. With a length of 30 mm and a diameter of 6 mm (M6)It allows a perfect maintenance of the combo valve box + admission conveyor.

The Carburettor gasket 29 mm is specifically designed for post-2018 engine developments. It is placed between the carburetor body (usually the Tillotson HW-27A) and the admission flange. Its internal diameter of 29 mm is perfectly calibrated for not obstructing the passage of the gases and avoid any turbulence, thus guaranteeing a flow of laminar air and an instant engine response.
