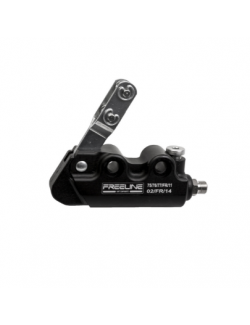

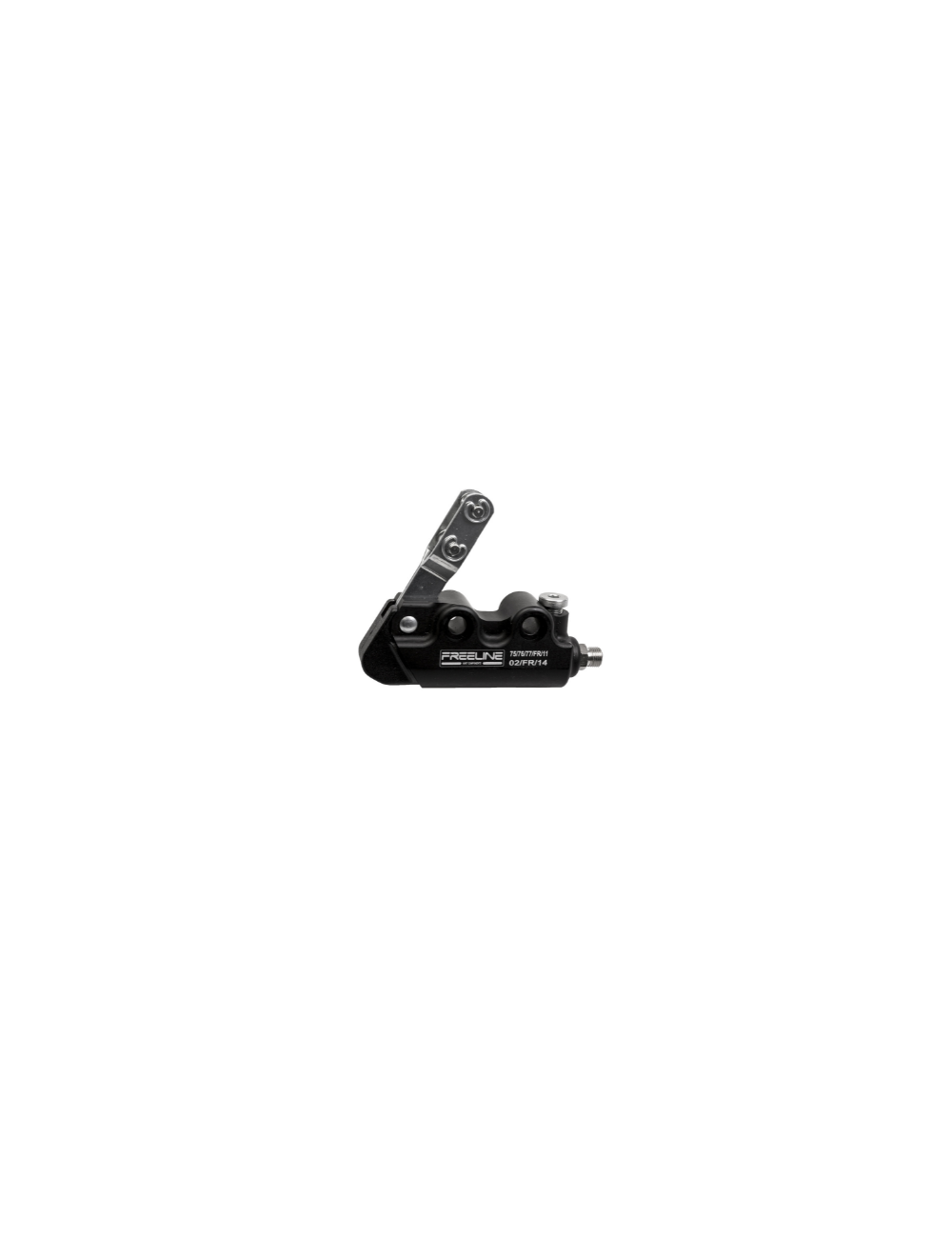

The Revision kit for diameter brake pump 19 mm is a complete set of original repackaging (Original Freeline Racing Parts). It is essential for restoring absolute sealing, hydraulic pressure and reactivity of your rear brake master cylinder or 19 mm.

As shown in detail the reference photo 12856.jpgThis all-in-one kit brings together all the hardware and internal wear parts necessary for professional refurbishment. Rather than replacing a complete master cylinder, this package of factory parts allows you to eliminate pressure losses, liquid leaks at the pedal and the phenomenon of "spongy pedal" that spoil your chronos on the track.

The 22SR EVO piston is a precision piece. Unlike appearances, it's not just a metal cylinder. It is machined with extremely low tolerances to allow the joints (cups) to slide without flee while generating a constant hydraulic pressure.

• The evolution "EVO": It guarantees a surface finish (polishing) optimized to reduce friction and increase the lifetime of the cups.

The Liquid tank for brake pump 22SR is a spare part of origin manufacturer (Original Freeline / Birel Art). This jar is specially designed to power the master cylinder (brake pump) model 22SR that equips the braking system of the group competition chassis Birel

In your Birelart brake pump, this ring is the main pivot point between the control lever and the thrust rod. Its function is twofold:

1. Eliminate the game: It allows a "fat" movement without sidebeat. Without it, your brake pedal will have an unpleasant dead race ("blur" effect).

2. Self-lubrication: Generally composed of sintered bronze impregnated with oil, it is designed to operate "dry" or with a minimum of lubricant, thus preventing the premature wear of the steel pivot axis against the aluminum of the lever

BirelArt 22SR pump clips

On a 22SRR pump, you find O-rings at different locations (tank hose entrance, fill cap, sometimes as guiding joints).

The most important point: The material. The seals used in hydraulic braking must imperatively be in EPDM (ethylene-propylene).

• The danger: If you are using a "standard" O-ring (often in NBR / black nitrile bought in DIY store), it will swell, disintegrate and pollute your circuit in less than a few hours in contact with the Brake fluid DOT 4 /5.1.

The Brake pump axle fork is a detached part of the manufacturer's original security (Original Freeline / Birel Art). This mechanical high-strength steel mechanical element ensures the direct and critical connection between your linkage (brake rod connected to the pedal) and the internal piston of your master cylinder (brake pump).

As illustrated on the reference image 12831.jpgThis part consists of a machined cylindrical portion that fits side pump and an openwork U-shaped clevis allowing the passage of the link link. Designed to endure repeated and extremely violent braking pressures, its original manufacture guarantees perfect bore tolerances for Eliminate any parasitic game in the pedal, offering the driver a specific feeling and an optimal dosage during the deceleration phases.

This cap (or bellows) is not just a piece of rubber. He plays a crucial role:

1. Anti-contaminant barrier: It prevents track dust, sand and water to enter the body of the pump.

2. Protection of the axis: If dirt enter here, they mix with fat, creating an abrasive paste that will scratch the piston and destroy your internal seals.

3. Maintaining the lubricant: It keeps the clean fat inside the mechanism of the thrust rod.

The 22SR pump cover fills three critical functions:

1. Protection against contaminants: The brake fluid (dot 4 or 5.1) is hygroscopic (it absorbs the moisture of the air). The lid, associated with its internal membrane, prevents water from polluting the fluid.

2. Level maintaining: It secures the tank against projections during major vibrations of the kart.

3. Management of depression: The internal membrane (often associated with the lid) allows the level of liquid to decrease as the platelet wear without creating a vacuum of air in the tank.

Why is this spring critical?

Although it is a simple room, the internal spring of the 22SR pump filled a major safety function:

1. Return of the piston: It guarantees that the piston returns to the "rest" position after each braking. If the piston does not return completely, the circuit does not fulfill correctly by the tank, creating a soft pedal or braking that "drag" (drives that heat).

2. Maintaining pressure: It ensures a constant pre-load for the joints (cups) remain in place.

3. Reactivity: It allows the pedal to go back immediately as soon as you relax the foot.

On your 22SRR pump, the "pin" (pin or pivot axle) of 5x15mm is the piece that undergoes shear forces at each braking.

• Function: It serves as a hinge for the lever that operates the piston of the pump.

• Why a specific room? Unlike a metal rod cut at the right time, this pine is in Treated steel (tempered). If you are using a "soft" stem of hardware, it will dig and deform in a few tours, creating an important game in your pedal (the famous "blur" at the beginning of the race).

The tank is screwed into the body of the pump. Between these two rooms is an O-ring (O-Ring) or a sealing washer that does all the work.

• The role of fixing: Hold the tank integral with the pump while ensuring perfect sealing to prevent air from being sucked into the circuit during the pumping phase.

• Fragility: The tank threaded tip is often plastic. If you force too much, you risk breaking plastic in The body of the pump (very difficult to extract).
