TMKART clutch stop (7)

-Complete product Clutch stop / original pushing mushroom TM KART - Landmark n ° 7 Exploded view - KZ engines

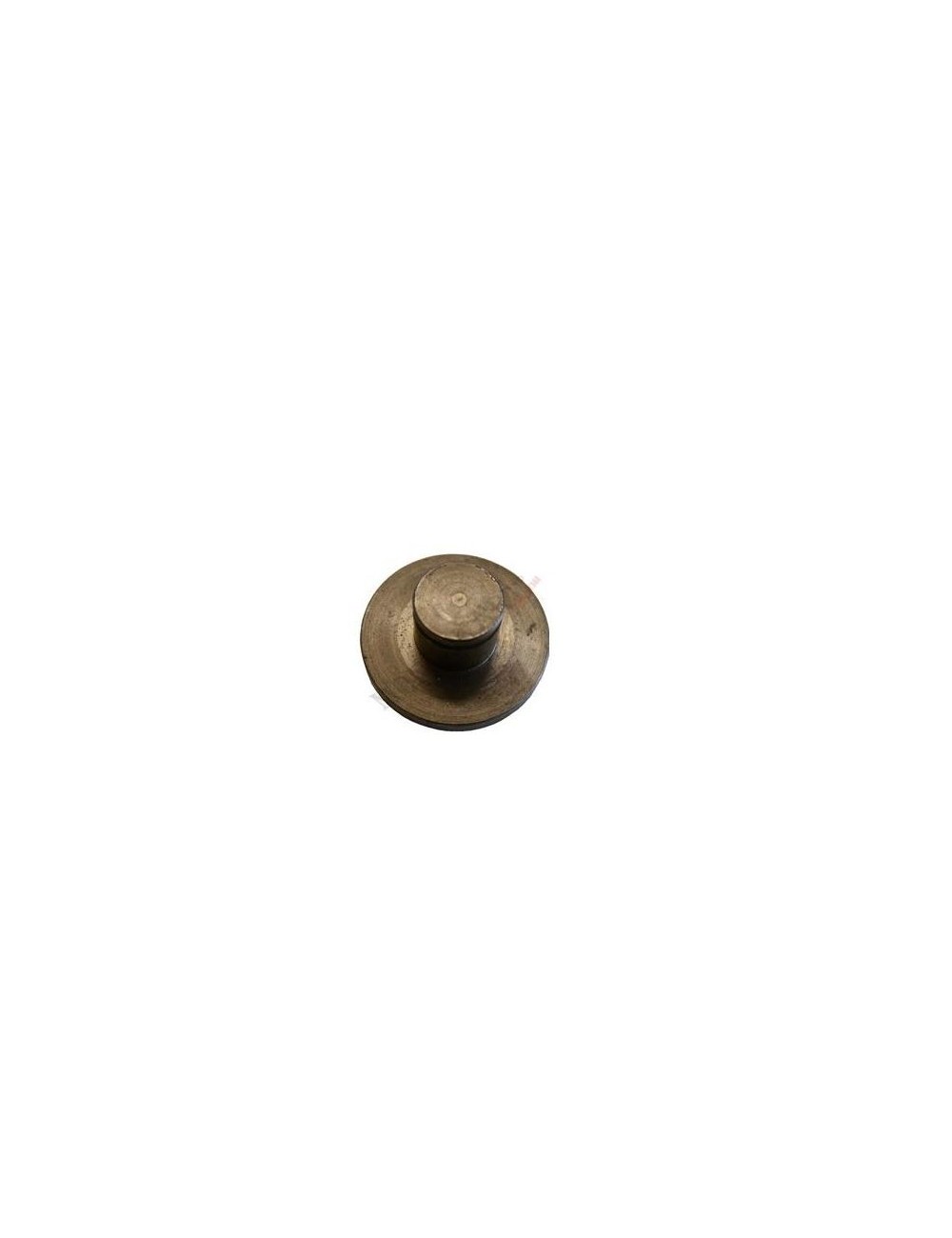

Guarantee an instantaneous transmission of the disengagement effort thanks to the push Mushroom / Stop Stopper TM KART. Axial room directly located at the center of the transmission of your gearbox kart 125cc, this fungus receives the support of the lapping rod to remove the presser tray and release the disks.

On the official Exploded View (Tavola 6 - Motor Clutch KZ-R3 Total Black), this stop wears the landmark n ° 7. Made of tM kart treated steel, its support face is machined with micrometric precision to fit perfectly on the needle radial cage (marker 6). It cash repeated thrusts without scoring or deforming, ensuring a constant disengage stroke and a millime control of the skating point initially on all blocks TM KZ10C, KZ-R1, KZ-R2 and KZ-R3.

👨🔧 Tip in Michel (the corner of the expert)

* "Hi the kings of the mechanics! The push mushroom n ° 7, it is he who takes direct the thrust of your debaring rod at the bottom of the pressure plate. If he has the game or if his bearing range is marked, you will lose the accuracy at the lever. Clutch.

My stand trick for the control of the push fungus: checking the support face and the test of the rod !

When you review the clutch, remove the circlips (marker 1) and remove the fungus (marker 7). Carefully inspect the flat face that comes into contact with the needle cage (marker 6). If it has a circle digging, scratches or warm-up traces (blue / brunette color), replace it without hesitation! A damaged range destroys the new needle cage in a few sessions.

Also check the rear bowl of the fungus: the end of the thrust rod must come to bed perfectly. A small graphical or high temperature fat movie in the reassembly bowl will avoid any wear by friction between the stem and the stop! "*

📐 Installation Guide (Location # 7): Step by Step
