Complete handicapped steering wheel mounting kit CRG

Summary: High performance accessibility

THIS KIT CRG is the official "factory" solution to transform a standard frame into configuration Handikart. It allows to remove the foot pedals for transferring vital functions directly to the steering column and steering wheel.

• Brake lever (master cylinder): A specific cylinder with ergonomic lever for a precise dosage of manual braking.

• Accelerator control: Lever or pallet system for progressive and reactive acceleration.

• Total integration: Designed to fit perfectly on the steering columns CRG, ensuring maximum rigidity during braking efforts.

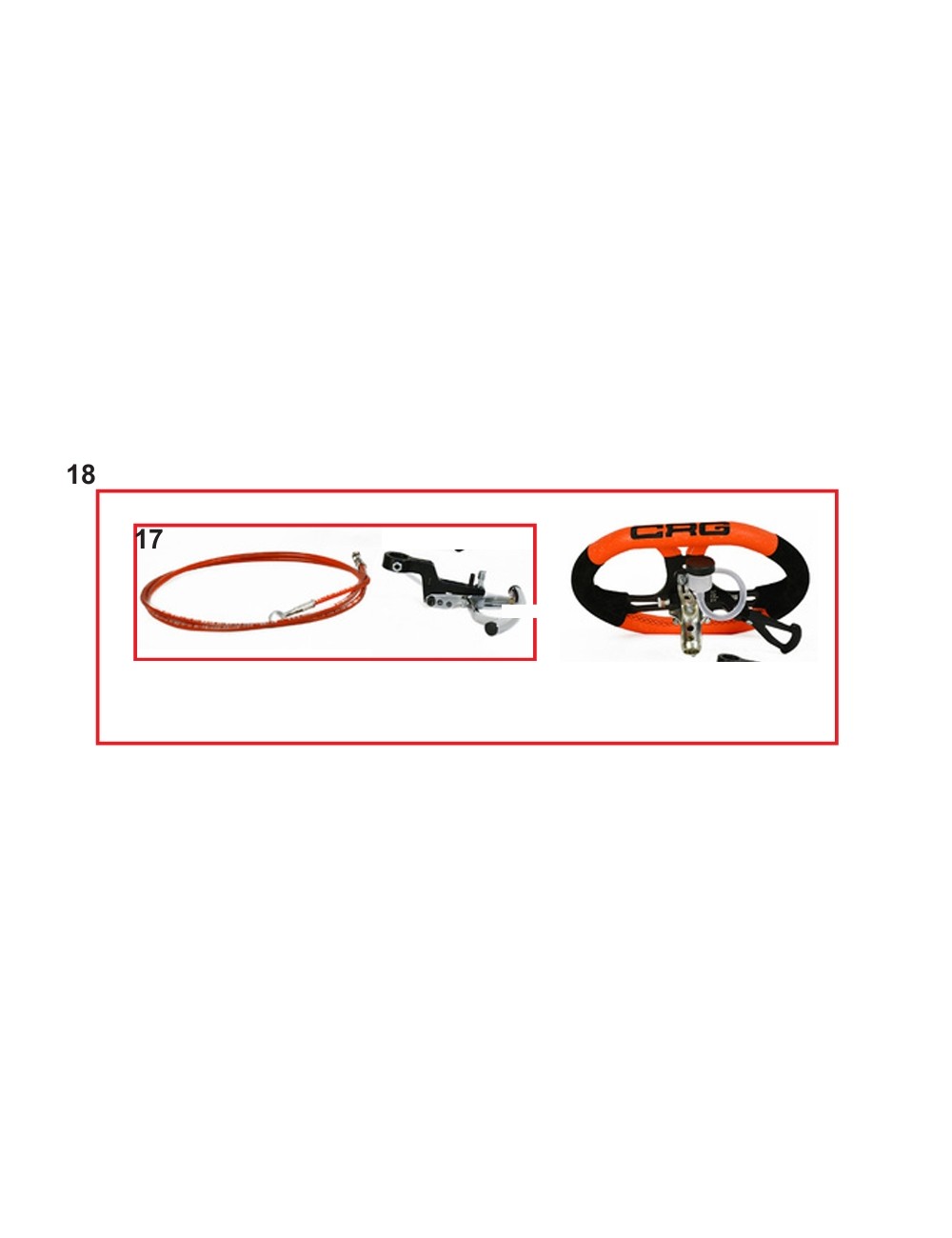

- Technical specifications (according to exploded views)

- Mounting Tuto: Security and Ergonomics

1. Support installation: The control block securely attaches to the upper part of the steering column. It must be perfectly aligned not to hinder the rotation of the steering wheel.

2. Hydraulic connection: The cylinder at the wheel must be connected to the rear caliper (or front brakes according to the configuration). Warning: A complete and thorough purge is essential to guarantee biting braking from the first contact.

3. Setting the levers: Adjust the brake lever and accelerator palette according to the size of the driver's hand. The pilot must be able to switch from braking acceleration without letting go away.

4. Accelerator wiring: Make sure that the accelerator cable sheath has a sufficient curvature to not harden the control during a complete steering wheel steering.

💡 Michel's trick

"The hand driving requires much more force in the forearms that we do not think. The trick: Install a reinforced diameter or grip flywheel to facilitate the maintenance of kart while manipulating the levers. My Pro Council: Check the path of the brake hose. As it goes back along the steering column, it is subject to repeated twist. Use flexible fasteners so that it can move freely without ever pinching or rubbing against the frame. "

❓ FAQ SEO (Frequently Asked Questions)

Q: Does this kit keep the original pedals?

A: Generally, the pedals are removed to gain space and weight, but it is technically possible to double orders if the technical regulation of the category authorizes it (for pilot schools for example).

Q: Is the flywheel master cylinder as powerful as a pedal?

A: Yes, the lever ratio is calculated to provide equivalent hydraulic pressure, but it requires a pilot adaptation time to handle sensitivity with the fingers.

Q: Is this approved for the competition?

A: Yes, this material CRG is designed to meet FIA / CIK safety standards for Handikart events. However, make sure that the assembly is validated by a technical commissioner before your first race.
